Description

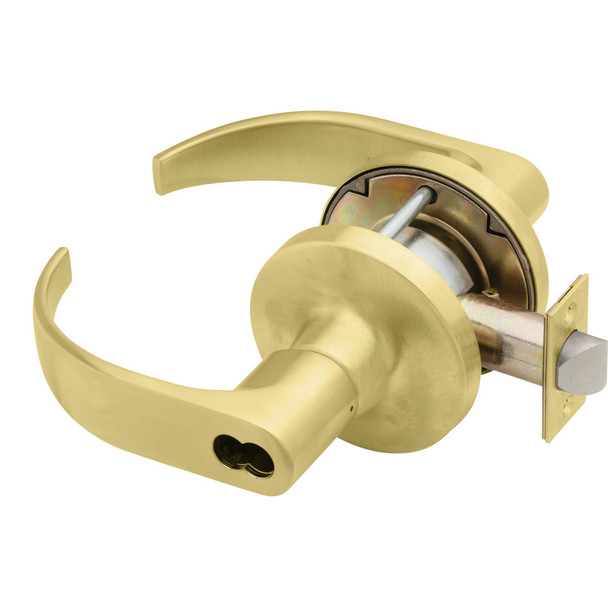

The Falcon T511BD Q 606 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and high-abuse institutional applications. Non-handed design with removable cylinder for fast rekeying. Brass and stainless steel construction with zinc plating and dichromate finish resists corrosion in demanding environments.
Standard door thickness 1-3/4" to 2-1/8"; thin door adapters available. 2-3/4" backset standard; 2-3/8" also offered. Accepts manufacturer cylinders with 6-pin chambers (pinned in 5, upgradeable to 6 or 7-pin). Interchangeable core options in small and large format. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for specification clarification and expert installation guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter A30775-000-00 available)
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Cylinders: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard (conventional); A keyway standard (I/C core)
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners (standard)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
