Description

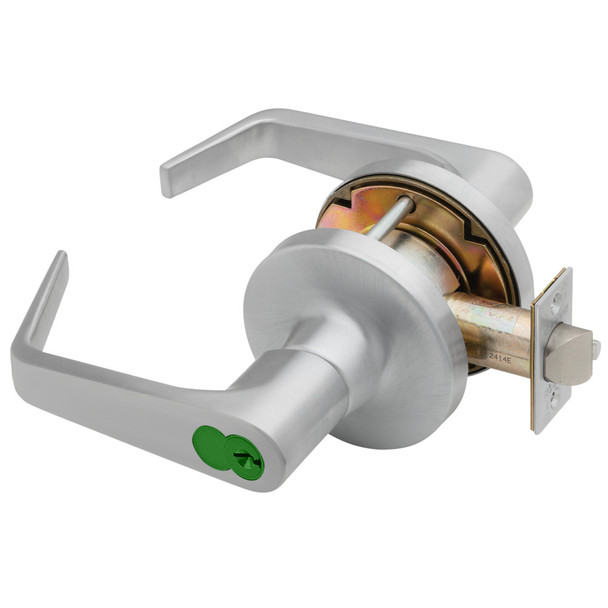

The Falcon T511HD D 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional environments. Its removable cylinder design enables quick re-keying without lock removal, making retrofits simple. The compression spring construction exceeds ANSI/BHMA Grade 1 requirements, delivering durability at a solid price point.
Standard door thickness range is 1-3/4" to 2-1/8", with adapter kits available for thinner doors. The lock accepts most manufacturers' cylinders and is available with conventional, interchangeable core (SFIC/LFIC), or optional keyways. As an authorized Falcon dealer, E.D. Locks offers expert guidance on configuration, keying options, and installation support. Contact us at sales@edlocks.com or 1-877-207-6067 for specifications tailored to your project.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit available)
- Backset: 2-3/4" standard; 2-3/8" available; 5" backset link available
- Bolt Projection: 9/16" standard; 3/4" optional
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners (standard); 2-3/4" available
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin chambers, pinned in 5; 6 or 7-pin available; removable/re-keyable
- Keyway: "G" standard (conventional); "A" standard (I/C core)
- Materials: Brass or cold formed steel; zinc plated and dichromated; stainless steel springs
- Trim: Heavy wrought brass/bronze roses; pressure cast levers
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
- Interchangeable Core: SFIC and LFIC options available
