Description

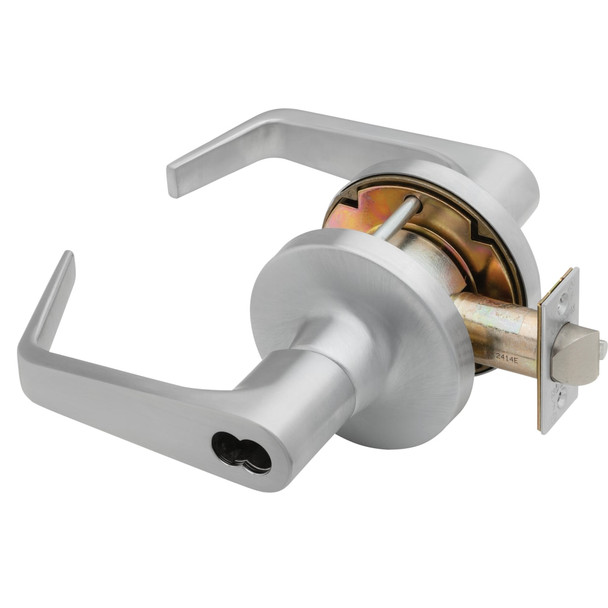

The Falcon T Series T511JD-SCH D 626 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and high-abuse institutional environments. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for schools, hospitals, offices, and other facilities demanding maximum durability and security in a keyed entry solution.
This lock accepts standard manufacturer cylinders and features removable cylinder assemblies for quick re-keying without door modification, simplifying retrofits and maintenance. Available in multiple backsets, door thicknesses, and keyway options including interchangeable core designs. As an authorized Falcon dealer, E.D. Locks provides expert specification assistance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for help selecting the right configuration for your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard, 2-3/8" available, 5" with optional link
- Bolt Projection: 9/16" standard, 3/4" available
- Cylinders: 6-pin standard, 7-pin available, interchangeable core options
- Keyway: G-keyway standard (conventional), A-keyway (interchangeable core)
- Construction: Brass/cold-formed steel, zinc plated, stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" (standard)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys furnished
