Description

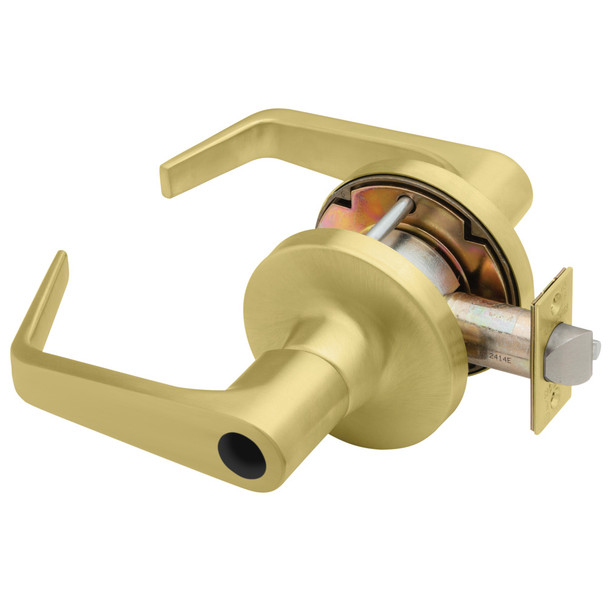

The Falcon T511LD D 606 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional and commercial applications. Engineered to exceed ANSI/BHMA Grade 1 testing requirements, this lock combines a compression spring design with brass and stainless steel construction for durability and rust resistance. Non-handed design simplifies inventory and installation across your facility.
This lock accommodates standard 1-3/4" to 2-1/8" door thicknesses with 2-3/4" backset; thin door adapters and alternative backsets are available. The removable cylinder design allows quick re-keying without removing the lock body, ideal for retrofits and facility changes. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keying options, specifications, and fast shipping on this Grade 1 solution.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" available; 5" with link kit)
- Bolt Projection: 9/16" standard (3/4" available)
- Cylinder: 6-pin drilled, pinned in 5 (6 or 7-pin available)
- Keyway: G (conventional) or A (interchangeable core)
- Material: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners (UL listed)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys Furnished: Two nickel silver keys standard
