Description

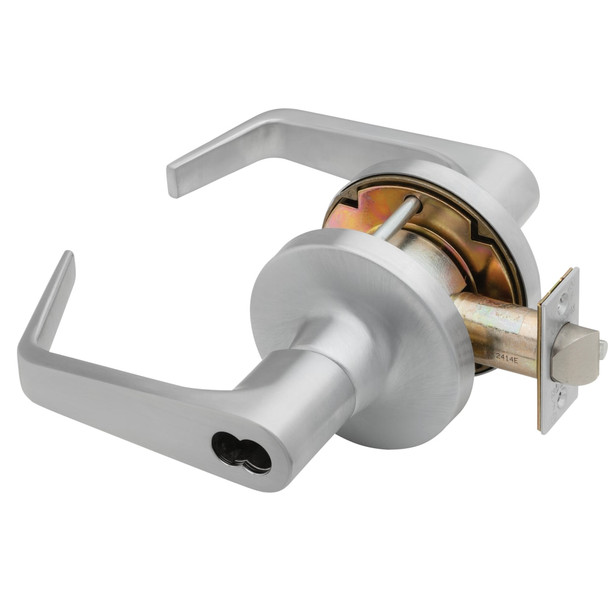

The Falcon T521BD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this lock withstands heavy abuse while offering simple re-keying through removable cylinder design, making retrofits and building updates straightforward and cost-effective.
Standard for 1 3/4" to 2 1/8" doors with 2 3/4" backset, the T521BD accepts most manufacturers' cylinders and is available with conventional or interchangeable core options. Brass and stainless steel construction resists corrosion. As an authorized Falcon dealer, E.D. Locks provides expert guidance on configuration, thin-door adapters, and custom backsets. Contact sales@edlocks.com or call 1-877-207-6067 for fast quotes and technical support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1 3/4" to 2 1/8" standard
- Backset: 2 3/4" standard (2 3/8" available; 5" backset with link A22161-005-10)
- Bolt Projection: 9/16" standard
- Cylinders: 6-pin drilled, pinned in 5 (6-pin or 7-pin available); removable for re-keying
- Keyway: G keyway standard (A keyway on interchangeable core)
- Material: Brass and cold formed steel with zinc plating; stainless steel springs
- Handing: Non-handed
- Strike: 4 7/8" x 1 1/4" ANSI with curved lip
- Latch Faceplate: 2 1/4" x 1 1/8" square corners
- Keys: Two nickel silver keys furnished standard
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
