Description

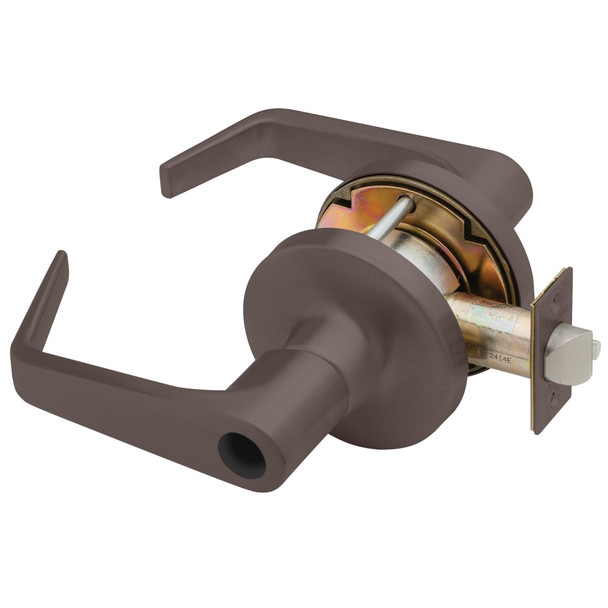

The Falcon T561LD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. Built with compression springs that exceed ANSI/BHMA Grade 1 testing requirements, it combines solid construction with easy re-keying capability. The removable cylinder design simplifies retrofitting and maintenance across multi-door facilities.
Standard 2-3/4" backset fits 1-3/4" to 2-1/8" door thickness; thin door adapters and alternate backsets available. Non-handed design works on any door swing. Interchangeable core cylinders (SFIC and large format) are available for keyed-alike groups. As an authorized Falcon dealer, E.D. Locks provides expert guidance on specifications, handing, and installation—contact sales@edlocks.com or 1-877-207-6067 for free consultation.
Specifications
- Grade: ANSI/BHMA Grade 1
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Door Thickness: 1-3/4" to 2-1/8" standard (adapter kits available for thinner doors)
- Cylinder: 6-pin drilled, pinned in 5 (6-pin and 7-pin options available)
- Keyway: "G" standard conventional, "A" standard interchangeable core
- Bolt Projection: 9/16" standard (3/4" option available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners, UL listed
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Material: Brass/cold formed steel, zinc plated, dichromated; stainless steel springs
- Roses: Heavy wrought brass/bronze
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
