Description

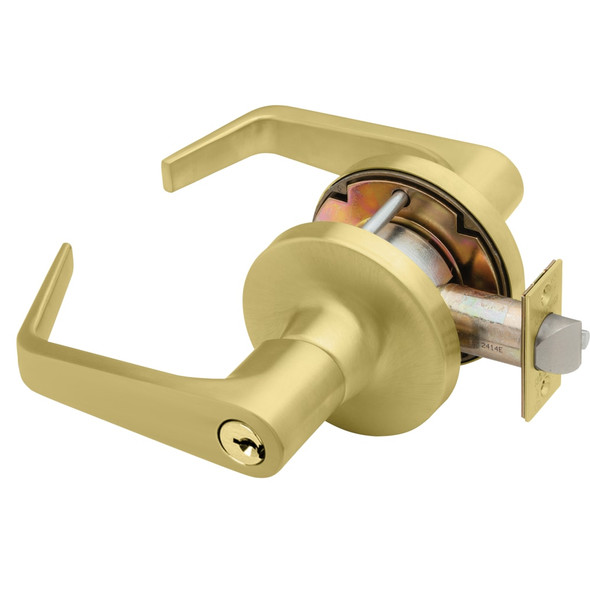

The Falcon T561PD D 625 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and high-abuse institutional applications. It features a compression spring design that exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for facilities demanding reliability and durability at a competitive price point.
This lock accepts standard cylinders and is easily re-keyable without removal from the door, simplifying retrofits and maintenance. It ships preassembled and ready for installation. As an authorized Falcon dealer, E.D. Locks offers expert support and guidance for specification, handing, and keying options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration for your project.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" available; 5" via link)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinders: 6-pin standard, pinned in 5 (6 or 7-pin available)
- Cylinder Housings: Solid brass
- Springs: Stainless steel (compression); phosphor bronze (cylinder)
- Finish Material: Brass or cold formed steel, zinc plated and dichromated
- Keyways: G (conventional); A (interchangeable core)
- Handing: Non-handed
- Keys: Two nickel silver keys standard
- Interchangeable Core: Available in small format (SFIC) and large format
