Description

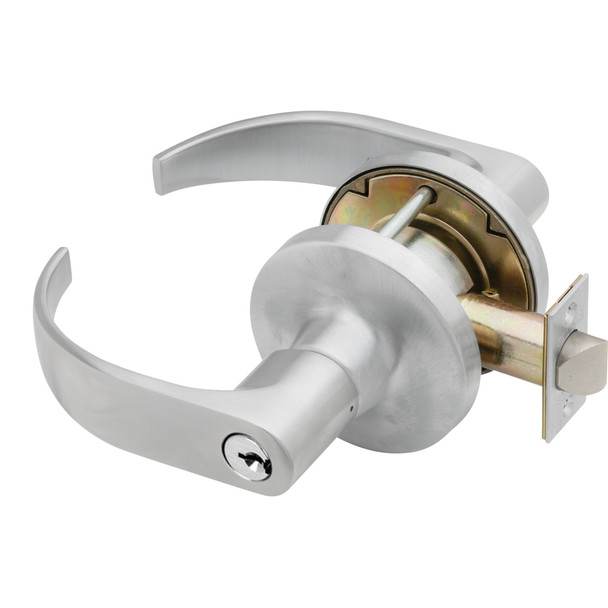

The Falcon T Series is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers durability and reliability in solid brass and cold-formed steel construction with zinc-plated, dichromated finish for rust resistance.
The T581CP6D Q 626 accepts any manufacturer's cylinder and features removable cylinder assemblies for quick, easy re-keying, making retrofits simple. Standard door thickness is 1-3/4" to 2-1/8" with adapter kits available for thinner doors. As an authorized Falcon dealer, E.D. Locks provides expert guidance on backset options, interchangeable core availability, and custom specifications. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: "G" standard on conventional cylinders
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI strike
- Material: Brass or cold-formed steel, zinc-plated and dichromated
- Springs: Stainless steel
- Handing: Non-handed
- Keys: Two nickel silver keys standard
