Description

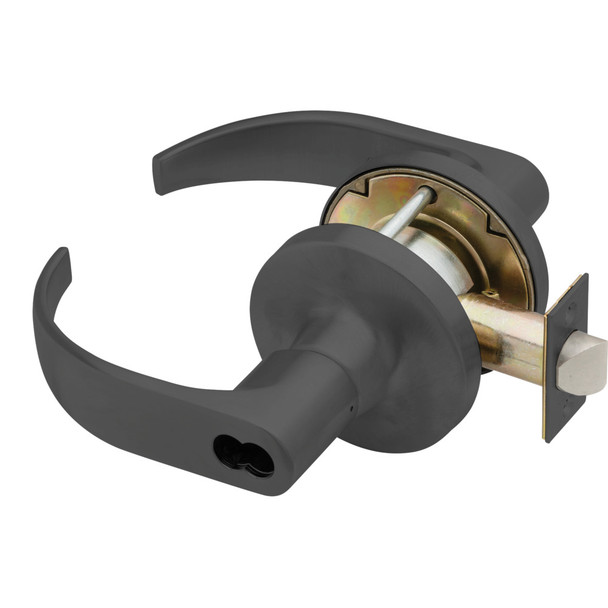

The Falcon T Series is a heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. It exceeds ANSI/BHMA Grade 1 testing standards with a compression spring design, making it ideal for applications demanding durability and reliable performance in demanding environments where abuse is common.
This lock accommodates standard 1-3/4" to 2-1/8" door thickness with a 2-3/4" backset, and features removable cylinders for quick rekeying without replacing hardware. As an authorized Falcon dealer, E.D. Locks offers expert consultation on sizing, keying options, and installation support. Contact sales@edlocks.com or call 1-877-207-6067 for guidance on your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" available, 5" with link)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Handing: Non-handed
- Material: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Trim: Wrought brass or bronze roses with pressure-cast levers
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Keys: Two nickel silver keys furnished
- Features: Removable cylinder assembly for rekeying; interchangeable core options available
