Description

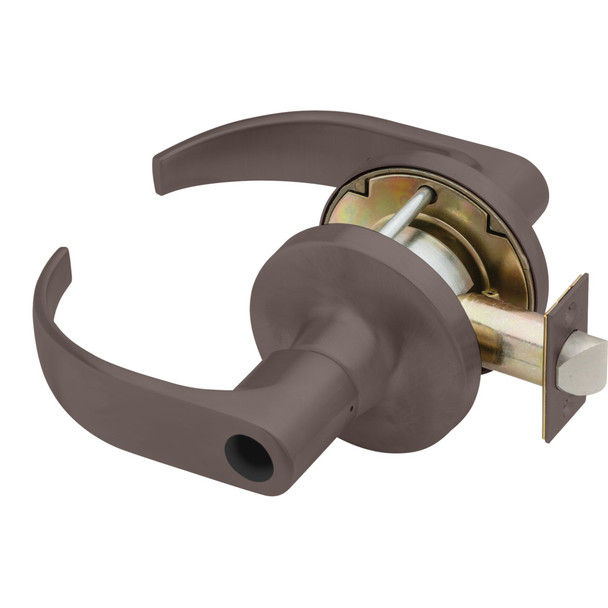

The Falcon T581LD Q 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for facilities demanding reliable, long-lasting security at a solid price point.
This lock accepts standard manufacturer cylinders and features removable cylinders for quick re-keying and easy retrofitting. Fits standard door thickness 1-3/4" to 2-1/8" with optional adapters available. Contact our experts at sales@edlocks.com or 1-877-207-6067 for compatibility questions, keying assistance, and authorized dealer support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" also available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyway: G keyway standard (A keyway standard on interchangeable core)
- Material: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Keys: Two nickel silver keys furnished standard
- Handing: Non-handed
