Description

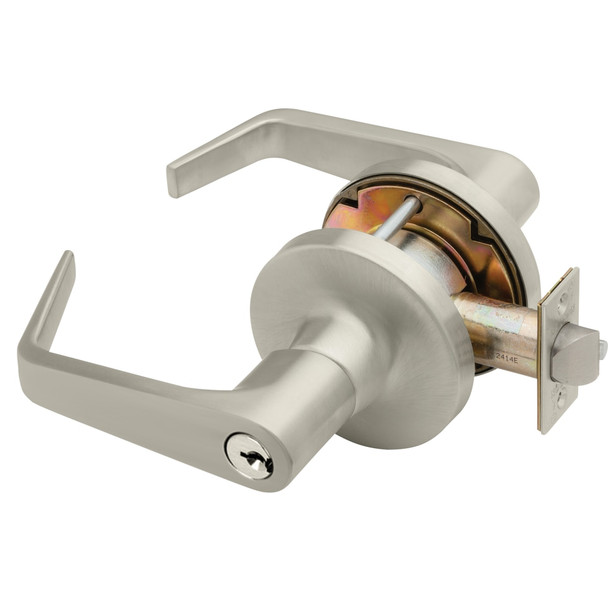

The Falcon T581PD D 619 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for facilities demanding durability, security, and reliable performance in demanding environments.
This lock accepts standard manufacturer cylinders and features removable cylinder assemblies for simple re-keying and building retrofits. Compatible with doors 1-3/4" to 2-1/8" thick (thin door adapters available). E.D. Locks is an authorized dealer offering expert guidance on specification, keying options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (adapters available for thinner doors)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Bolt Projection: 9/16" standard (3/4" option available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard (A keyway on interchangeable core)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI strike
- Construction: Brass or cold-formed steel with zinc plating and dichromate; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
