Description

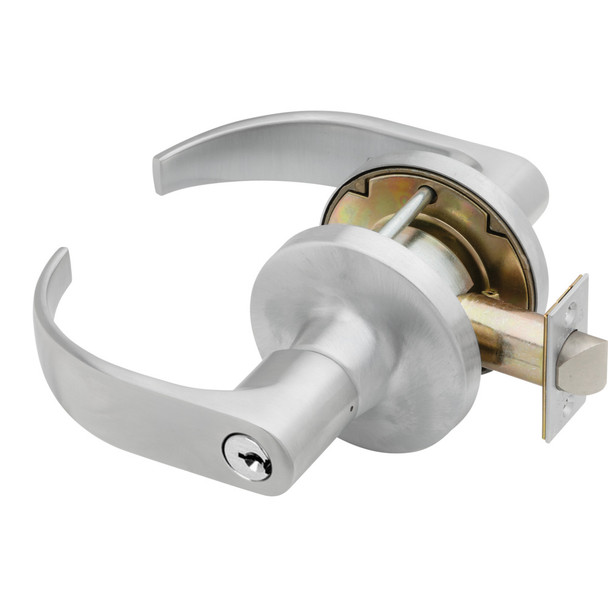

The Falcon T581PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. With a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers reliable performance and security for commercial doors, schools, hospitals, and other demanding environments.
The T581PD accepts any manufacturer's cylinder and features removable cylinders for quick re-keying, making retrofit installations straightforward. Compatible with standard 1-3/4" to 2-1/8" doors (adapter kits available for thinner doors), it comes with 2-3/4" backset standard and 2-3/8" as an option. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, backset selection, and cylinder options including interchangeable core configurations.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (adapter kit available)
- Backset: 2-3/4" standard; 2-3/8" available
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" (square corners)
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Cylinder: 6-pin chambers (pinned in 5, 6, or 7-pin options)
- Keyway: G (standard); A (interchangeable core)
- Key Furnished: Two nickel silver keys standard
- Material: Brass or cold formed steel, zinc plated; stainless steel springs
- Handing: Non-handed
- Attachment: Threaded mounting nuts with 10-32 screws
