Description

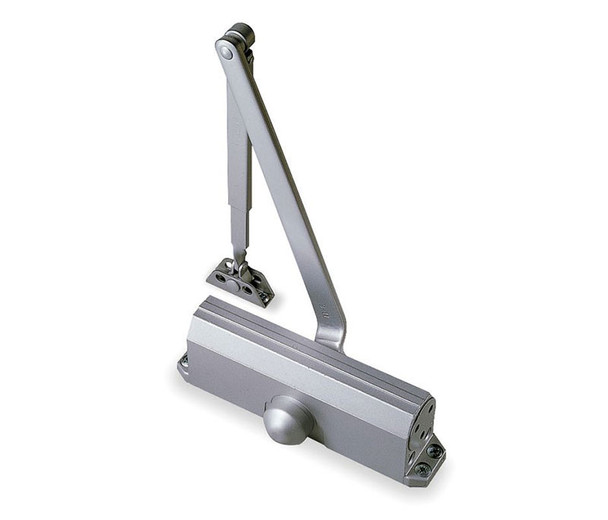

The Norton 1600 Series UNI1601H is a heavy-duty surface-mounted door closer designed for aluminum storefront doors and high-traffic commercial applications. Its cast aluminum body and rack-and-pinion mechanism deliver proven reliability over 12 million cycles, making it ideal for facilities managers and building owners seeking dependable door control.
This non-handed closer accepts adjustable spring sizes 1-6 or fixed sizes 3-4, with a 2-7/8 inch projection and maximum 180-degree swing. Installation is quick with the slide-arm design and adjustable sweep, latch, and back-check valves. As an authorized Norton dealer, E.D. Locks provides expert guidance on sizing, arm selection, and configuration. Contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: Norton
- Series: 1600
- Model: UNI1601H 28-32 689
- Type: Surface-mounted door closer
- Body Material: Cast aluminum
- Mechanism: Rack and pinion
- Spring Sizes: Adjustable 1-6 or fixed 3-4
- Projection: 2-7/8 inches
- Maximum Swing: 180 degrees
- Cycle Rating: 12 million plus
- Handed: Non-handed
- Features: Quick-adjust slide arm, independent sweep/latch/back-check valves
- Cover: Plastic cover optional
