Description

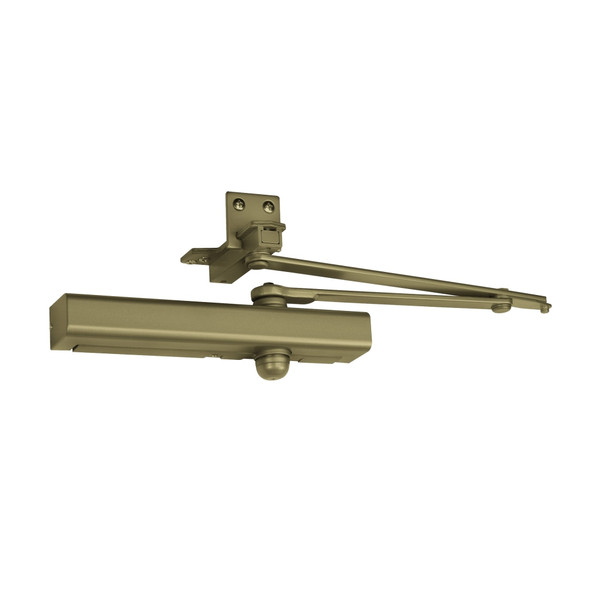

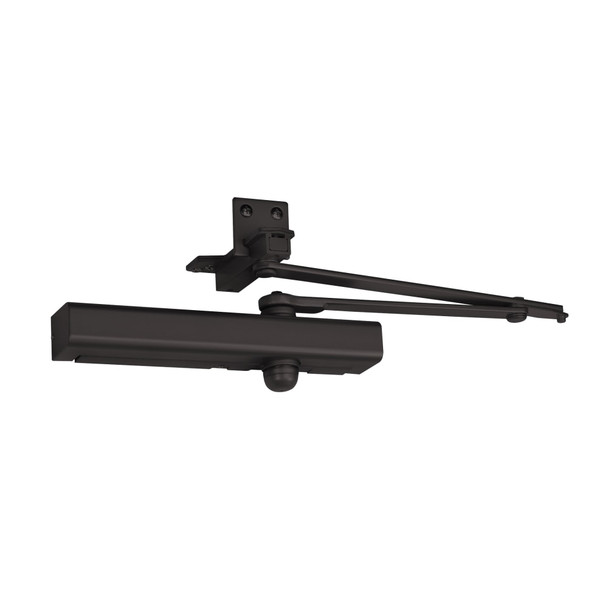

The Norton 8301 is a heavy-duty surface-mounted door closer designed for interior and exterior commercial doors. Built with a cast aluminum body and rack-and-pinion mechanism, it delivers reliable closing performance across temperature extremes from -40°F to high heat. Non-handed design works on doors of either hand, making it a versatile choice for multi-door facilities and retrofit projects.
The 8301 fits standard door frames with minimal projection (2-1/8" max) and features adjustable spring power (sizes 1-6), independent sweep and latch speed controls, and backcheck adjustment via hex key. An authorized E.D. Locks dealer can verify your door hand and application requirements, ensuring proper sizing and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility and setup.
Specifications
- Brand: Norton
- Model: 8301
- Size Range: 42-48
- Spring Power: 690
- Design: Rack and pinion
- Body Material: Cast aluminum
- Mount Type: Surface mounted
- Projection: 2-1/8" maximum with standard cover
- Hand: Non-handed (universal)
- Operating Temperature Range: -40°F to high heat
- Cycle Life: Exceeds 10 million cycles
- Cover: Slim-line plastic (standard)
- Spring Adjustment Range: Size 1-6
- Speed Controls: Sweep and latch (hex key adjusted)
- Backcheck: Adjustable via hex key valve
