Description

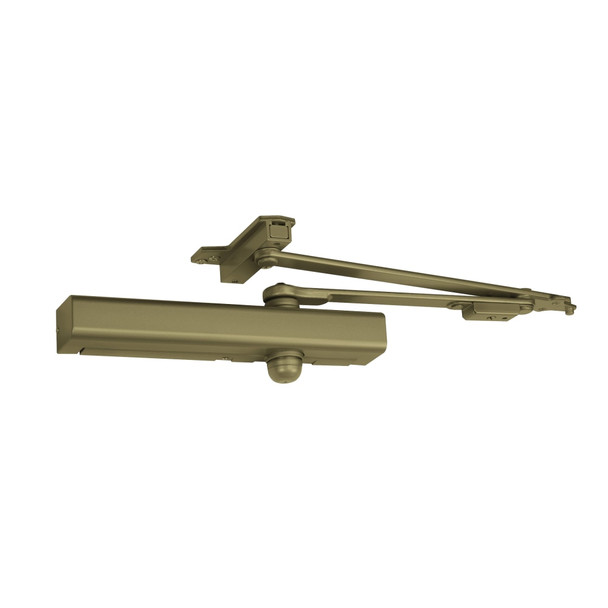

The Norton 8301 is a heavy-duty surface-mounted door closer designed for high-traffic commercial interiors and exteriors. Built with a cast aluminum body and rack-and-pinion mechanism, it handles up to 10 million cycles and suits doors of either hand, eliminating the need for separate left and right units.
This closer features adjustable spring power (sizes 1-6), independent hex-key valves for sweep and latch speed control, and backcheck adjustment for smooth, controlled closing in extreme temperatures from -40°F to high heat. The slim-line plastic cover projects just 2-1/8" from the door. As an authorized Norton dealer, E.D. Locks offers expert guidance on sizing, finish options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for free technical support.
Specifications
- Model: UNI8301H 33-41 696
- Brand: Norton
- Type: Surface-mounted door closer
- Body: Cast aluminum alloy
- Mechanism: Rack and pinion
- Cycle rating: 10+ million cycles
- Handed: Non-handed (either hand)
- Spring power range: Size 1-6 adjustable
- Projection: 2-1/8" maximum with standard cover
- Cover: Slim-line plastic standard
- Valves: Two hex-key adjustable (sweep, latch); adjustable backcheck
- Temperature range: -40°F to high heat
- Installation: Surface mount
