Description

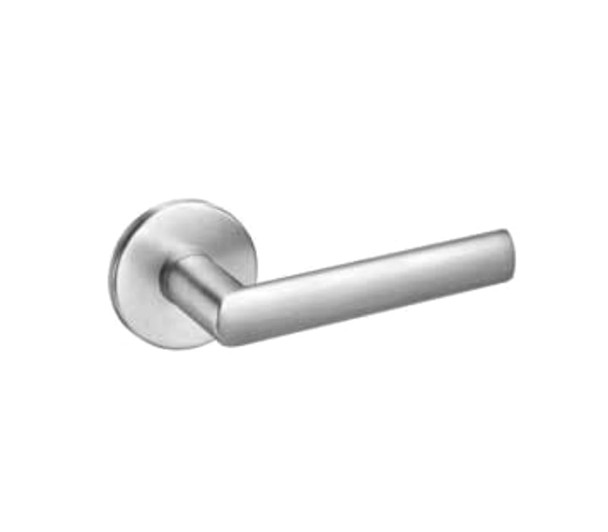

The Yale 8800 Series VIR8861FL mortise lock trim pack delivers ANSI/BHMA Grade 1 security for commercial doors requiring heavy-duty, vandal-resistant performance. Field-reversible design and quick lever handing simplify installation, making it ideal for facilities managers and contractors who need reliable access control without complicated setup.
Compatible with 1-3/4" standard door thickness and features a 2-3/4" backrest with 3/4" stainless steel throw. The lock includes a 6-pin keyed-random cylinder with two keys and a curved lip strike. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, handing options, and specifications. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- ANSI/BHMA Certification: Series 1000, Grade 1
- Fire Rating: UL/cUL up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel front, free-floating
- Cylinder: Brass, 6-pin, keyed-random with two keys
- Field Reversible: Yes
- Strike: 1-1/4" curved lip for 1-3/4" doors
- Available Finishes: 17 finishes
- Warranty: 10 years mechanical
