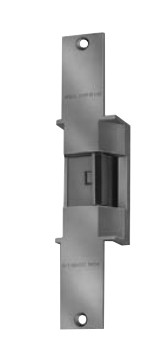

Von Duprin 6100 Series 6214 24VDC Fail Secure Heavy Duty Electric Strike For Mortise and Cylindrical Device
Overview
Von Duprin electric strikes are known for their reliability, durability and security. The 6200 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is fully UL1034 and UL10C listed and meets ANSI/BHMA Grade 1.
6200 Series electric door strikes are designed for use with a variety of mortise or cylindrical locksets. Electrified strikes allow remote release of a locked door by activating a movable lip (keeper) using an entry/exit button or credential reader and can be a cost effective means for managing access. 6200 Series strikes come standard as 24 VDC in fail secure mode. 12 VDC and AC operation can be selected, as can fail safe mode and other options that enable you to configure these strikes to fit your exact needs.
Use 6200 Series electric strikes for retrofit applications or new construction. To assure the proper selection of an electric strike on new applications, lockset compatibility charts are shown on the next page. When using a lockset not listed or when retrofitting a strike to an existing application, please contact Von Duprin Technical Support for application assistance.
Features
- 17 configurations available for cylindrical and mortise applications
- Heavy-duty stainless steel construction
- 24 VDC standard with 12, 16 and 28 VDC operation optional
- Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
- Options include rectifier kit for VAC to VDC conversion, dual monitor switches, entry buzzer and Allegion Connect wire extension
- Six popular finishes available to suite with existing hardware
- Suitable for interior and exterior doors
- UL 10C 3-hour fire-rated (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- Meets ANSI/BHMA A156.31, Grade 1 for endurance and dynamic strength
- Meets ANSI/BHMA A156.31, Grade 1, 1500 lbs static strength
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
| Specifications
*Includes wood frame for retrofit applications. | Dimension
|
Available Finish
- 6214-24V-US10B (Oil Rubbed Bronze)
- 6214-24V-US32 (Stainless Steel)
- 6214-24V-US32D (Satin Stainless Steel)
- 6214-24V-US3 (Polished Brass)
Cylindrical lockset compatibility
6211, 6211AL, 6211WF, 6212, 6213, 6214, 6215, 6221, 6222, 6223, 6224, 6224AL, 6225 and 6226 Strikes
| Manufacturer | Device |
| Baldwin | 1⁄2" – 3⁄4" (13 mm – 19 mm |
| Best | 3⁄8" – 3⁄4" (10 mm – 19 mm) |
| Corbin/Russwin | 1⁄2" – 3⁄4" (13 mm – 19 mm) |
| Falcon | 1⁄2" – 3⁄4" (13 mm – 19 mm) |
| Sargent | 1⁄2" – 3⁄4" (13 mm – 19 mm) |
| Yale | 1⁄2" – 3⁄4" (13 mm – 19 mm) |
| Schlage | 3⁄8" – 3⁄4" (10 mm – 19 mm) |
- Von Duprin cannot guarantee compatibility, as other manufacturer’s designs may change without notice.
- When using a lockset not listed or when retrofitting a strike to an existing application, please contact Von Duprin Technical Support for assistance.
- Signalling may not function when using 3⁄8” (10 mm) throw bolt. Deadlocking cannot be guaranteed with all locks.
Mortise lockset compatibility
6211, 6211AL, 6211WF, 6212, 6213, 6214, 6215, 6221, 6222, 6223, 6224, 6224AL, 6225 and 6226 Strikes
| Manufacturer | Device |
| Von Duprin | 7500 |
| Adams Rite | 4510, 4710 |
| Baldwin | 6000 |
| Best | 24H, 30H |
| Corbin/Russwin | 9000 |
| Precision | Mortise |
| Falcon | M100, M200, M300, M400, M500, M600 |
| Sargent | 7700, 8100,9000 |
| Yale | 7030, 7130, 8600, 8700 |
| Schlage | L9000, K30, K40, K50, K60 |
6200 Series power requirements
| Models | Voltage | Current | Duty | Amps | Ohms |
| All | 12V | DC | Continuous | 0.60 | 21 |
| All | 24V | DC | Continuous | 0.33 | 83 |
Continuous duty = Energized 1 minute or more
Von Duprin 6200 Wiring
