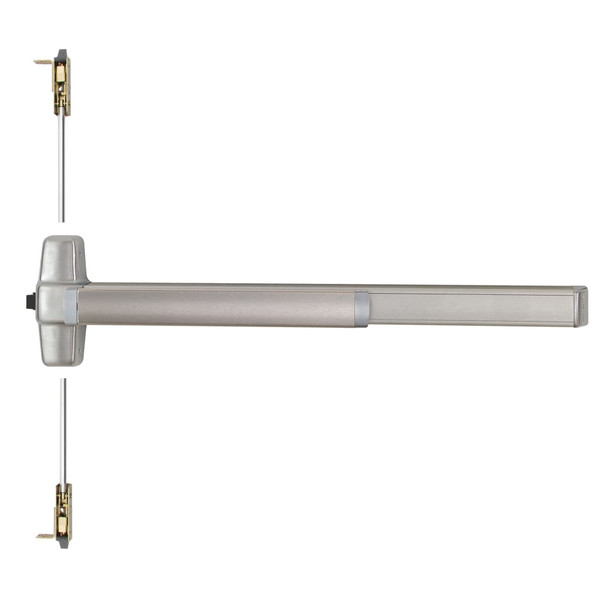

Von Duprin CXA9847L-18-F 4 32D RHR Concealed Vertical Rod Exit Device

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48 Fire-rated Device, 80" to 100" Door Height, Classroom Function, 18 Lever with Escutcheon, Delayed Egress Device 15 Seconds, Less Dogging, Satin Stainless Steel Finish, Field Reversible"

MSRP: $8,159.00
$5,834.73
You save $2,324.27
SKU:
CXA9847L-18-F 4 32D RHR
In Stock & Ready To Ship!
Current Stock:Only left:

Description

The Von Duprin CXA9847L concealed vertical rod exit device is a UL-listed panic hardware solution designed for single or double metal doors in commercial buildings. The smooth mechanism case provides reliable emergency egress and meets life safety codes for high-traffic facilities.

This RHR-handed unit installs on 4-inch top rails and features a 32D satin stainless finish. Verify door thickness and configuration before purchase. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on compatibility and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right exit device for your application.

Specifications

  • Model: CXA9847L-18-F 4 32D RHR
  • Type: Concealed Vertical Rod Exit Device
  • Case Style: Smooth Mechanism
  • Hand: Right Hand Reverse (RHR)
  • Rail Size: 4 inch
  • Finish: 32D Satin Stainless Steel
  • Door Type: Single or Double Metal Doors
  • UL Listed: Yes
