Description

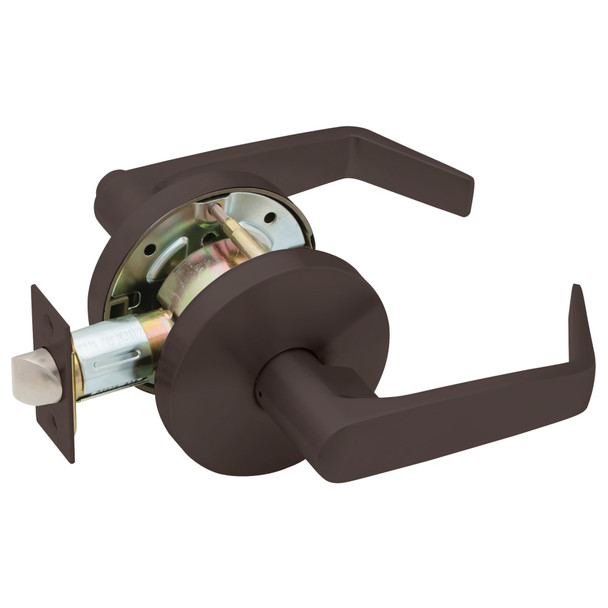

The Falcon W101S SRD 613 is an affordable cylindrical lock designed for moderate-traffic commercial doors in government, retail, industrial, and multi-family buildings. It combines solid construction with flexible keying options, making it ideal for facility managers seeking reliable security without premium pricing.
This lock accepts standard 6-pin cylinders and SFIC interchangeable cores compatible with major manufacturers including Schlage, Yale, and Sargent. Installation fits standard 1-3/8" to 1-3/4" doors with 2-3/4" backset (2-3/8" available). As an authorized Falcon dealer, E.D. Locks offers expert support for specification, keying, and masterkeying at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: W101S SRD 613
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: Six-pin conventional or interchangeable core options
- Keyways: G keyway standard (Falcon); A keyway on I/C cores; Schlage C available
- Latch: 1/2" stainless steel projection, UL listed for 3-hour door assemblies
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Material: Brass or cold-formed steel housing, zinc-plated; stainless steel springs
- Keys: Two nickel silver keys included
- Handing: Non-handed
- Finish: Satin Stainless (613)
