Description

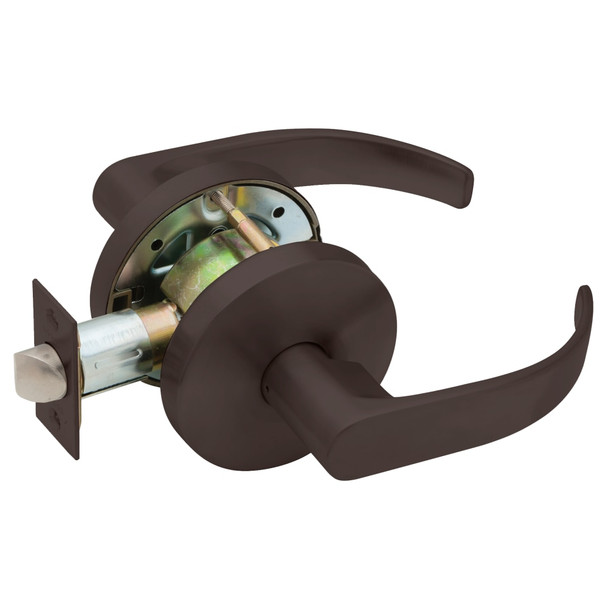

The Falcon W161D SRQ 613 is an affordable cylindrical lock designed for lower-traffic commercial doorways in government, retail, industrial, and multi-family settings. It combines solid construction with budget-friendly pricing, featuring brass or cold-formed steel components with stainless steel springs for reliable operation on standard door thicknesses of 1-3/8" to 1-3/4".
This non-handed lock accepts standard cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, making it versatile for various keying needs. Installation is straightforward with two-screw rose mounting. As an authorized Falcon dealer, E.D. Locks provides expert support for specification, keying, and masterkeying options. Contact sales@edlocks.com or call 1-877-207-6067 for assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: 6-pin conventional or interchangeable core options
- Keyways: G keyway standard on Falcon cylinders; A keyway on I/C cores; Schlage C available
- Latch: 1/2" stainless steel bolt, 1-1/8" x 2-1/4" latch face (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Trim: Heavy wrought brass or bronze roses; pressure-cast zinc levers
- Keys: Two nickel silver keys furnished standard
