Description

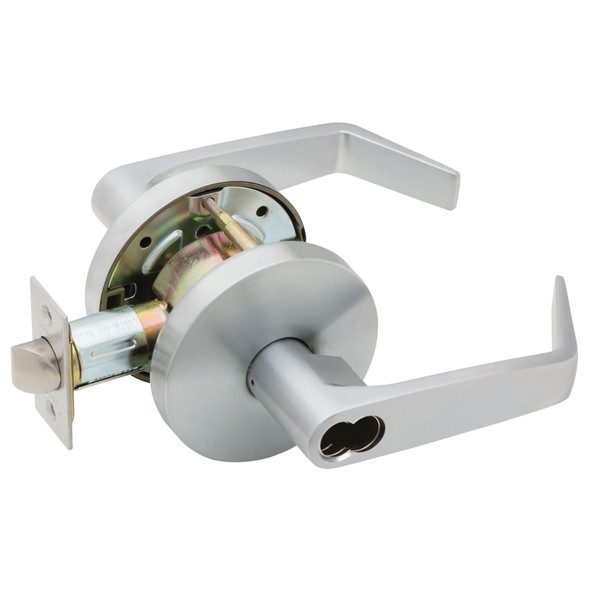

The Falcon W501BD LAT 626 is an affordable cylindrical lock designed for moderate-traffic commercial doors in government, retail, industrial, and multi-family buildings. Built with brass and cold-formed steel components, zinc-plated for rust resistance, this non-handed lock accepts standard 6-pin cylinders and small-format interchangeable cores compatible with Falcon, Schlage, Corbin-Russwin, Yale, and Sargent products.
Fits door thicknesses of 1-3/8" to 1-3/4" with standard 2-3/4" backset (2-3/8" also available). The lock features a stainless steel latch, heavy wrought brass roses, and pressure-cast zinc levers. Master keying is available on Falcon and Schlage C keyways. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, handing questions, and expert guidance.
Specifications
- Brand: Falcon
- Model: W501BD LAT 626
- Door Thickness: 1-3/8" to 1-3/4"
- Backset: 2-3/4" standard; 2-3/8" available
- Cylinder: 6-pin removable, re-keyable
- Keyway: G keyway (standard); Schlage C (optional)
- Latch: 1/2" stainless steel, self-adjusting front
- Latch Face: 1-1/8" x 2-1/4" (2-3/4" backset)
- Roses: Heavy wrought brass over steel inserts
- Levers: Pressure-cast zinc, solid (no inserts)
- Springs: Stainless steel
- Keys: Two nickel silver keys furnished standard
- UL Listed: 3-hour door assemblies
- Strike: 4-7/8" x 1-1/4" ANSI, curved lip
