Description

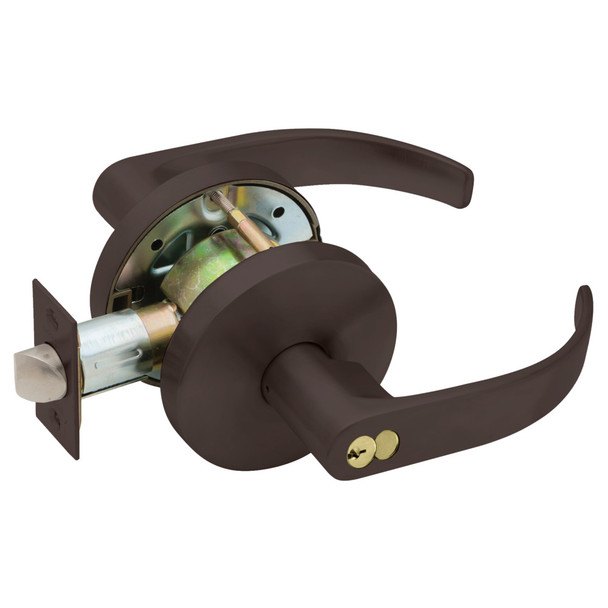

The Falcon W501HD Q 613 is an affordable cylindrical lock built for lower-traffic commercial doorways in government, retail, industrial, and multi-family facilities. Non-handed design with conventional or interchangeable core cylinders works with most commercial door trim, offering solid security without premium pricing.
This lock fits standard 1-3/8" to 1-3/4" doors with 2-3/4" backset (2-3/8" also available) and accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent for maximum flexibility. As an authorized Falcon dealer, E.D. Locks provides expert keying guidance and master key setup. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or custom pinning assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: Six-pin conventional or interchangeable core options
- Keyway: "G" standard on conventional cylinders; "A" on I/C cores; Schlage "C" available
- Latch Bolt: 1/2" stainless steel projection, UL listed for 3-hour door assemblies
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Trim: Heavy wrought brass or bronze roses with pressure-cast zinc levers
- Mechanism: Brass or cold-formed steel parts, zinc plated and dichromated; stainless steel springs
- Handing: Non-handed
- Master Keying: Available on Falcon and Schlage "C" keyways
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
