Description

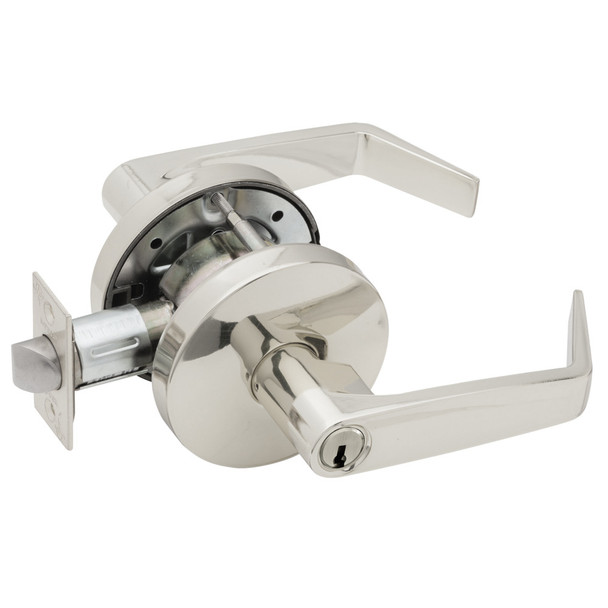

The Falcon W501PD D 625 is a cylindrical lock designed for low-to-moderate traffic commercial doors in government, retail, industrial, and multi-family buildings. It combines affordability with durability, featuring brass and stainless steel construction with zinc plating for rust resistance. Non-handed design fits most door configurations.
This lock accommodates standard 6-pin cylinders and small format interchangeable cores (SFIC) compatible with Schlage, Corbin-Russwin, Yale, and Sargent products. Installs on doors 1-3/8" to 1-3/4" thick with 2-3/4" standard backset. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, master keying, and compatibility. Contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Bolt Projection: 1/2" stainless steel
- Cylinder: 6-pin pinning, removable for re-keying
- Keyways: G keyway standard on Falcon cylinders; A keyway on interchangeable core cylinders; Schlage C available
- Construction: Brass or cold-formed steel body, zinc plated and dichromated; stainless steel springs
- Roses: Heavy wrought brass or bronze over steel inserts
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Interchangeable Core: 6-pin or 7-pin options available
- Keys Furnished: Two nickel silver keys standard
