Description

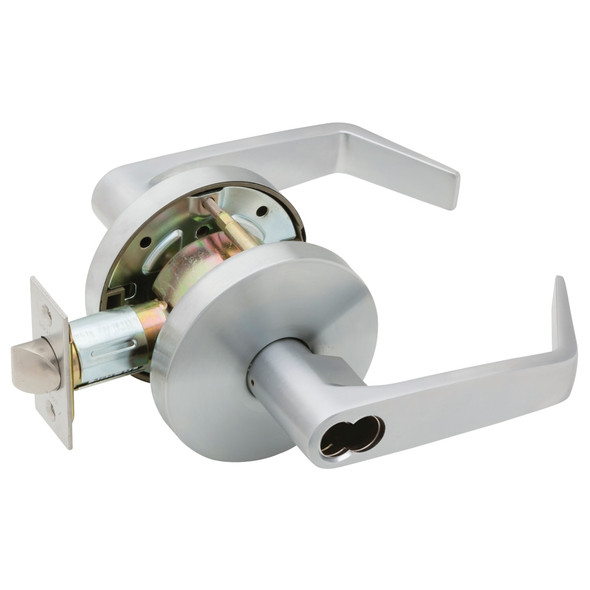

The Falcon W511BD LAT 626 is an affordable cylindrical lock designed for moderate-traffic commercial doors in government, retail, industrial, and multi-family settings. Its conventional cylinder and small-format interchangeable core work with SFIC products from other manufacturers, making it a flexible choice when budget and compatibility matter.
This non-handed lock fits standard 1-3/8" to 1-3/4" doors with 2-3/4" backset and accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, master keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for technical support and fast shipping.
Specifications
- Brand: Falcon
- Model: W511BD LAT 626
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: 6-pin conventional or interchangeable core (6- or 7-pin)
- Keyways: G keyway standard (Falcon); A keyway on I/C core; Schlage C available
- Bolt Projection: 1/2" stainless steel
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder Housing: Solid brass with stainless steel springs
- Trim: Heavy wrought brass or bronze roses with pressure-cast zinc levers
- Handing: Non-handed
- Keys Included: Two nickel silver keys
- Compatible Cylinders: Falcon, Schlage, Corbin-Russwin, Yale, Sargent
- Master Keying: Available on Falcon and Schlage C keyways
