Description

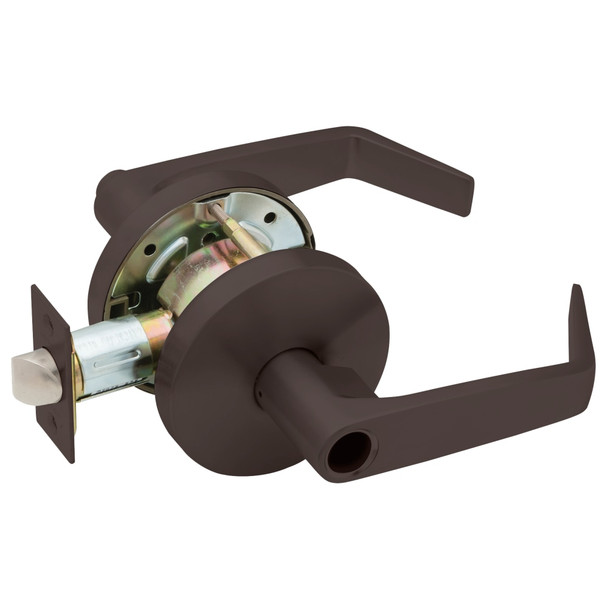

The Falcon W511LD SRD 613 is an affordable cylindrical lock designed for lower-traffic commercial doorways in government, retail, industrial, and multi-family buildings. Non-handed construction with conventional or interchangeable core cylinders fits most door trim styles and solves budget-conscious security needs without sacrificing quality.
Fits standard 1-3/8" to 1-3/4" doors with 2-3/4" backset (2-3/8" available). Compatible with Falcon conventional keyways, Schlage C keyway, and SFIC products from other manufacturers including Corbin-Russwin, Yale, and Sargent. As an authorized Falcon dealer, E.D. Locks provides expert keying guidance and master key support. Contact sales@edlocks.com or 1-877-207-6067 for compatibility assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: Six-chamber pinning, removable for re-keying
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour fire-rated doors
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI curved-lip strike
- Material: Brass or cold-formed steel cylinder housings; zinc-plated and dichromated; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys included
- Keyways: "G" keyway (standard cylinders), "A" keyway (interchangeable core)
