Description

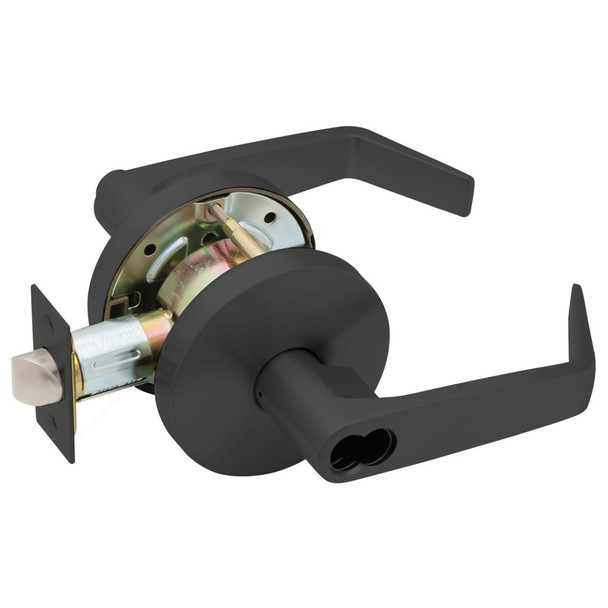

The Falcon W561BD D 622 is a cylindrical lock designed for commercial applications including government, retail, industrial, and multi-family buildings. It provides affordable security for lower to moderate traffic doorways, featuring conventional cylinders and small format interchangeable cores compatible with SFIC products from other manufacturers.
This lock accommodates standard door thickness of 1-3/8" to 1-3/4" and works with multiple keyway options including Falcon G keyway, Schlage C keyway, and others. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, masterkeying, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: 6-chamber pinning, removable for rekeying
- Latch Projection: 1/2" stainless steel bolt
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Cylinder Housing: Solid brass with stainless steel springs
- Keyways: G keyway (standard), Schlage C, and optional alternatives
- Compatible Cores: Falcon standard, Schlage, Corbin-Russwin, Yale, Sargent
- Handed: Non-handed
- Keys Included: Two nickel silver keys
