Description

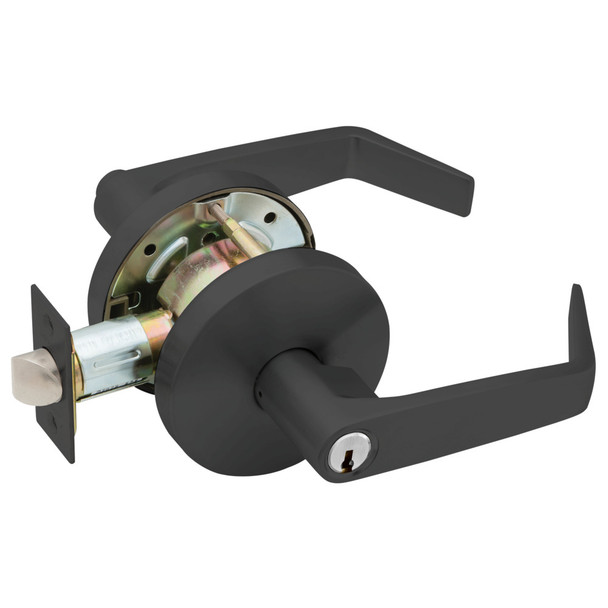

The Falcon W561CP6D is a commercial cylindrical lock designed for government, retail, industrial and multi-family buildings with moderate traffic. This affordable solution delivers solid security and durability for lower-traffic doorways, featuring brass and stainless steel construction with zinc plating for rust resistance.
Compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent, plus SFIC interchangeable cores. Fits doors 1-3/8" to 1-3/4" thick with standard 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, master key options and installation. Contact sales@edlocks.com or 1-877-207-6067 for support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Bolt Projection: 1/2" stainless steel
- Latch Face: 1-1/8" x 2-1/4" (2-3/4" backset)
- Cylinder: 6-pin removable, rekeying capable
- Keyway: "G" standard on conventional cylinders; "A" standard on I/C cores; Schlage "C" optional
- Trim: Heavy wrought brass or bronze roses; pressure-cast zinc levers
- Keys: Two nickel silver keys furnished standard
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- UL Listed: 3-hour fire-rated door assemblies
