Description

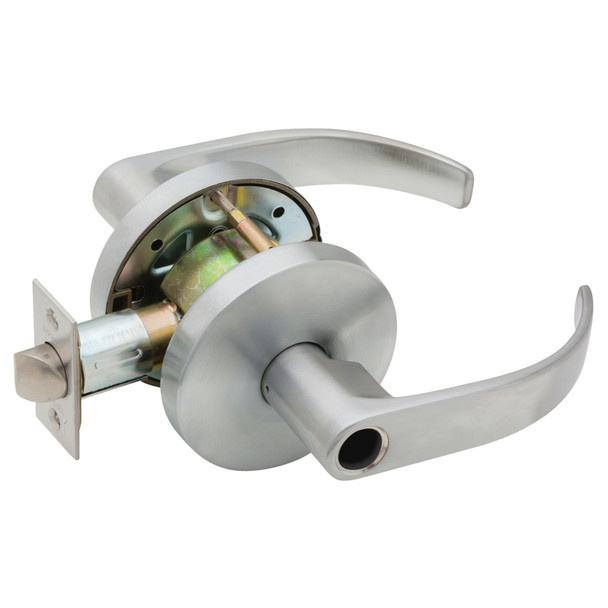

The Falcon W561LD SRQ 626 is an affordable cylindrical lock designed for low- to medium-traffic commercial doorways in government, retail, industrial, and multi-family buildings. This non-handed lock features a conventional 6-pin cylinder with interchangeable core compatibility, making it easy to rekey and maintain across your facility.
Standard for 1-3/8" to 1-3/4" door thickness with 2-3/4" backset, this lock accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent. It includes stainless steel springs and two nickel silver keys. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, master keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for specifications and ordering assistance.
Specifications
- Brand: Falcon
- Model: W561LD SRQ 626
- Finish: Satin Chrome (626)
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: 6-pin conventional, removable for rekeying
- Keyway: G (standard) or Schlage C
- Bolt Projection: 1/2" stainless steel
- Latch Face: 1-1/8" x 2-1/4"
- Strike: 4-7/8" x 1-1/4" ANSI
- Handing: Non-handed
- Trim Material: Wrought brass or bronze roses; pressure-cast zinc levers
- Keys Furnished: Two nickel silver keys standard
- Cylinder Compatibility: Falcon, Schlage, Corbin-Russwin, Yale, Sargent
- Interchangeable Core: 6- or 7-pin available
- UL Listed: 3-hour fire-rated door assemblies
