Description

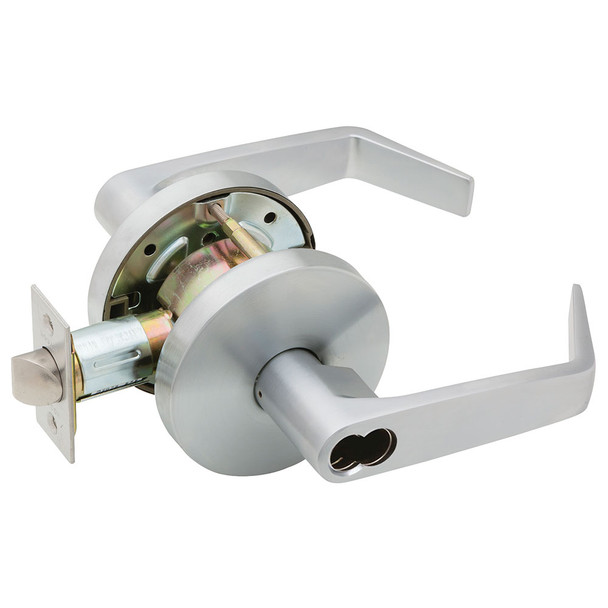

The Falcon W571BD D 626 is an affordable cylindrical lock designed for lower-traffic commercial doorways in government, retail, industrial, and multi-family buildings. Its conventional cylinder and small-format interchangeable core are compatible with SFIC products from other manufacturers, offering flexibility and cost-effective security for standard door applications.
This lock fits doors 1-3/8" to 1-3/4" thick and is non-handed for easy installation. It accepts 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, plus Schlage C keyway with master key options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and installation support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated, dichromated, stainless steel springs
- Cylinder: 6-pin conventional or 6/7-pin interchangeable core, solid brass housing
- Keyways: G keyway (standard cylinders), A keyway (I/C core), Schlage C available
- Bolt Projection: 1/2" stainless steel, UL listed for 3-hour door assemblies
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Trim: Heavy wrought brass or bronze roses, pressure-cast zinc levers
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
