Description

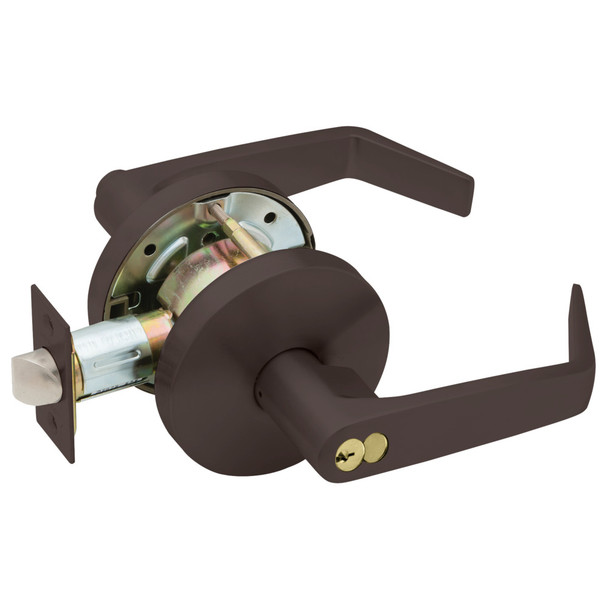

The Falcon W581HD D 613 is a commercial cylindrical lock designed for government, retail, industrial, and multi-family facilities requiring affordable security on lower-traffic doorways. Its conventional cylinder accepts industry-standard keyways and interchangeable cores, solving the need for flexible, compatible hardware across multiple door types and applications.
This lock fits standard 1-3/8" to 1-3/4" door thickness with 2-3/4" backset and accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent. Master keying is available on Falcon and Schlage C keyways. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options and installation support from an authorized Falcon dealer.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: Six-chamber pinning, removable for re-keying
- Keyways: G keyway standard on Falcon cylinders; A keyway on interchangeable cores; Schlage C available
- Bolt Projection: 1/2" stainless steel, UL listed for 3-hour assemblies
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Trim: Heavy wrought brass or bronze roses; zinc lever handles
- Keys: Two nickel silver keys furnished standard
