Description

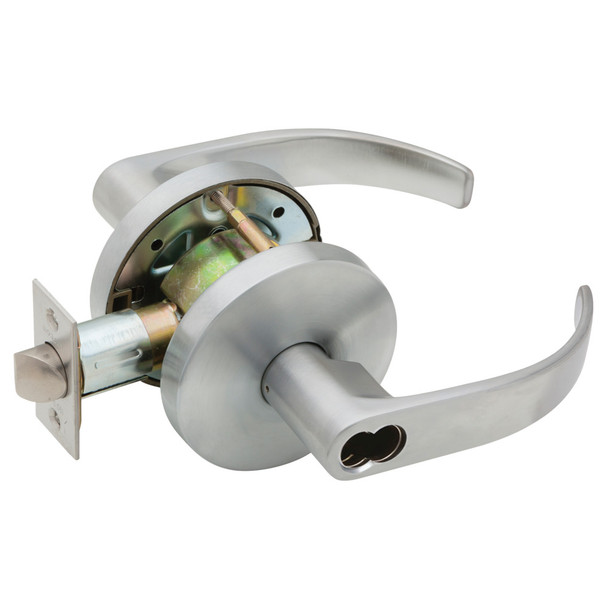

The Falcon W711BD Q 626 is a cylindrical lock designed for affordable security in lower-traffic commercial doorways across government, retail, industrial and multi-family buildings. It combines solid construction with flexible keying options, including standard cylinders and small format interchangeable cores compatible with SFIC products from competitors like Schlage, Corbin-Russwin, Yale and Sargent.
This non-handed lock fits door thicknesses from 1-3/8" to 1-3/4" with standard 2-3/4" backset (2-3/8" also available). The stainless steel latch projects 1/2" and is UL listed for 3-hour fire-rated door assemblies. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keying assistance, master key setup and compatibility questions with your existing door hardware.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: Six pin chambers, removable for rekeying
- Interchangeable Core: 6-pin or 7-pin SFIC options available
- Keyways: Falcon "G" standard; "A" on I/C cores; Schlage "C" optional
- Latch: 1/2" stainless steel bolt, UL listed for 3-hour assemblies
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Trim: Heavy wrought brass/bronze roses; pressure-cast zinc levers
- Mechanism: Brass/cold-formed steel parts, zinc plated; stainless steel springs
- Keying: Two nickel silver keys furnished standard; master keying available
