Description

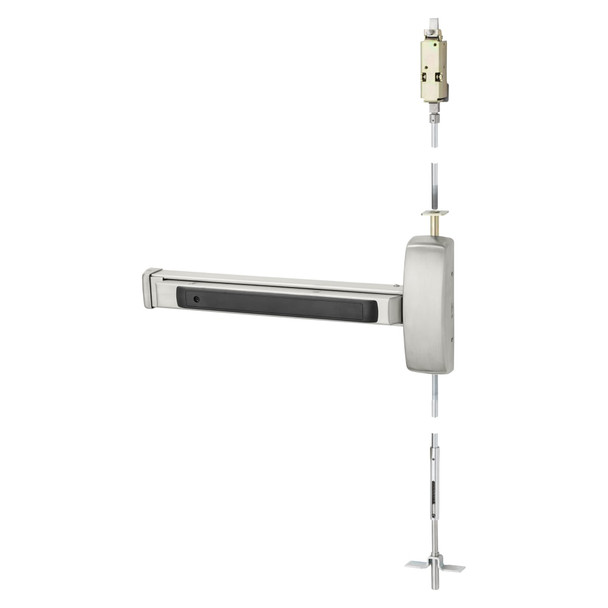

The Sargent 80 Series WD8613E is a heavy-duty exit device engineered for metal doors in commercial and institutional buildings. This rim-mounted panic bar exceeds ANSI/BHMA Grade 1 requirements and features modular construction with minimal moving parts, delivering maintenance-free operation and reliable emergency egress for any facility.
Designed for 1-3/4" minimum metal door thickness with 4-1/2" minimum stile width, this unit includes 650 top and 606 bottom strikes suitable for fire-rated applications. Multiple electric options (alarm, beacon, photoluminescent coating, touchpad, latch monitoring, and delayed egress) customize it for unique building needs. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for sizing assistance and expert installation guidance.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: WD8613E ETP RHR 32D
- Configuration: Rim, RHR (Right Hand Reverse)
- Door Thickness: 1-3/4" (44mm) minimum; up to 2-1/4" with special order
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Size: E Rail (24"-32" doors, factory cut to 32")
- Strikes: 650 Top & 606 Bottom (panic and fire-rated)
- Dogging: Hex key standard (specify 16- for cylinder dogging with #41 cylinder)
- Device Centerline from Floor: 41" (1041mm) standard; 38" (965mm) for elementary schools
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Pushbar Projection: 3" (76mm) neutral, 2-1/8" (54mm) depressed
- Maximum Door Height: 96"
- Top Bolt: Stainless steel
- Fasteners: Machine screws supplied
- Standards: ANSI/BHMA Grade 1 compliant
- Electric Options: Alarm (AL), Beacon (BT), Photoluminescent (PL), Illuminated Touchpad (TL), Latchbolt Monitor (53), Outside Lever Monitoring (54), Request-to-Exit Signal (55), Remote Latch Retraction (56), Delay Egress with Electromagnets (57), Electric Dogging (58), Electroguard Self-Contained Delayed Egress (59)
