Sargent

WD8615G ETW RHR 32D Sargent Exit Device

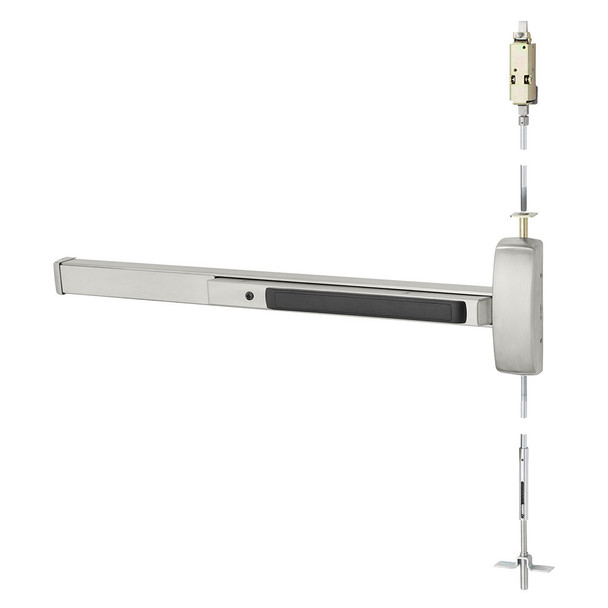

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, 120" Door Height, Passage Function, W Lever with Escutcheon, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse

MSRP: $5,525.00
$3,828.88
You save $1,696.12
SKU:
WD8615G ETW RHR 32D
In Stock & Ready To Ship!
Current Stock:Only left:
Ask Questions

Description

The Sargent WD8615G ETW RHR 32D is a Grade 1 rim exit device engineered for metal doors in commercial and institutional buildings. This durable panic hardware solution meets ANSI/BHMA standards, features modular construction with minimal moving parts, and delivers maintenance-free operation for the life of your building.

This right-hand reverse model fits 1-3/4" minimum thickness metal doors and ships with stainless steel fasteners and top bolt. The 32D designation indicates E-rail sizing for 24-32" door widths. Sargent 80 Series devices support optional delayed egress, alarm, and electric latch retraction features. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for configuration assistance and expedited shipping on orders over $450.

Specifications

  • Model: WD8615G ETW RHR 32D
  • Configuration: Rim with E-rail (24-32" door widths)
  • Minimum Door Thickness: 1-3/4" (44mm)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Maximum Door Height: 96"
  • Device Centerline Height: 41" (1041mm) standard
  • Center Case: 8-3/8" x 2-5/8"
  • Pushbar Projection: 3" neutral, 2-1/8" depressed
  • Top Bolt: Stainless steel
  • Dogging: Hex key standard
  • Standards: ANSI/BHMA Grade 1, fire-rated compatible
