Description

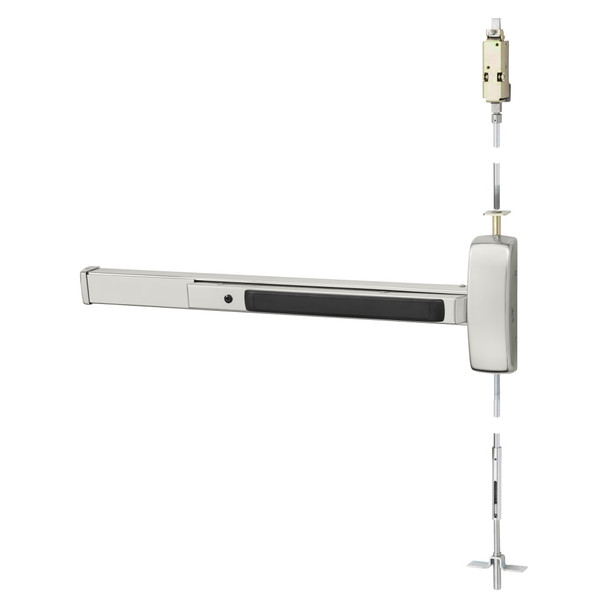

The Sargent 80 Series WD8643F is a Grade 1 rim exit device engineered for metal doors in high-security facilities. Built to exceed ANSI/BHMA standards, it delivers durable, maintenance-free operation across institutional, commercial, and industrial environments where reliable emergency egress and controlled access are essential.
This RHR (right-hand reverse) model fits metal doors 1.75 to 2.25 inches thick and includes a 650 top strike and 606 bottom strike for panic and fire-rated applications. Rails are available in four factory-cut sizes (E, F, J, G) to accommodate door widths from 24 to 48 inches. Optional features include delayed egress, alarmed exit, electric latch retraction, and photoluminescent or illuminated touchpad coatings. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for configuration assistance and expert installation support.
Specifications
- Grade: ANSI/BHMA Grade 1 (exceeds requirements)
- Configuration: Rim, right-hand reverse
- Door Thickness: 1.75 inches minimum; up to 2.25 inches with specification
- Door Width: 24 to 48 inches (four rail sizes available)
- Device Centerline: 41 inches from finished floor (standard); 38 inches for elementary schools
- Maximum Door Height: 96 inches
- Center Case Dimensions: 8.375 inches x 2.625 inches
- Pushbar Projection: 3 inches neutral, 2.125 inches depressed
- Strikes Included: 650 top strike, 606 bottom strike (panic and fire-rated)
- Dogging: Hex key dogging standard on non-rated devices; cylinder dogging available
- Fasteners: Machine screws supplied standard
- Top Bolt: Stainless steel
- Optional Features: Delayed egress, alarm, beacon, photoluminescent coating, illuminated touchpad, latch monitoring, remote latch retraction, electric dogging, self-contained delayed egress
