Description

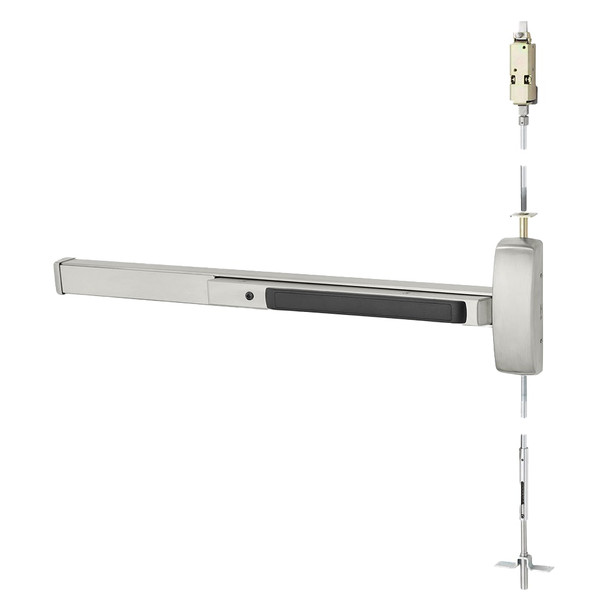

The Sargent WD8673G-24V is a heavy-duty exit device engineered for metal doors in commercial and institutional buildings. This Grade 1 panic hardware provides reliable emergency egress with modular construction, minimal maintenance, and exceptional durability designed to last the building's lifetime. Ideal for facilities prioritizing security and code compliance.
This right-hand reverse (RHR) device fits 24-32 inch door widths and mounts to 1-3/4 inch minimum metal doors. The package includes 650 top and 606 bottom strikes rated for fire-rated applications, plus hex key dogging and stainless steel top bolt hardware. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration options, electric features, and proper installation for your specific application.
Specifications
- Model: WD8673G-24V ETL RHR 32D
- Brand: Sargent 80 Series
- Rail: E Rail (24-32 inch door widths, factory cut to size)
- Door Thickness: 1-3/4 inch minimum
- Minimum Stile Width: 4-1/2 inches
- Device Centerline: 41 inches from finished floor (standard)
- Center Case: 8-3/8 inches x 2-5/8 inches
- Pushbar Projection: 3 inches (neutral) / 2-1/8 inches (depressed)
- Top Bolt: Stainless steel
- Strikes: 650 top strike, 606 bottom strike (panic and fire-rated)
- Dogging: Hex key standard (non fire-rated)
- Fasteners: Machine screws supplied
