Description

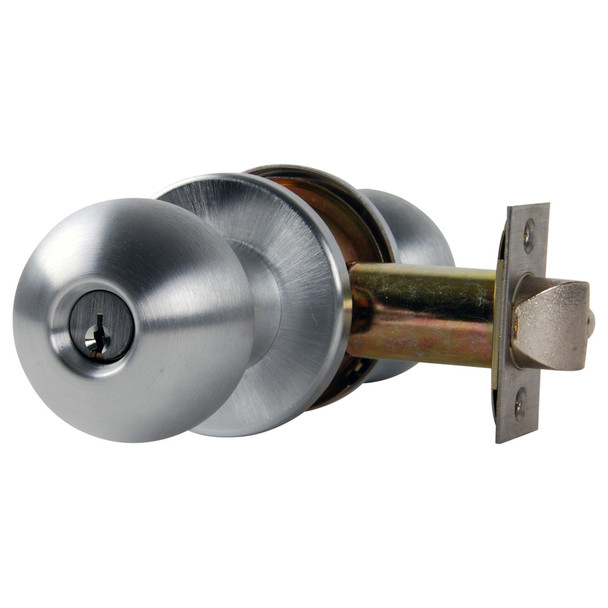

The Falcon X511CP6D is a Grade 1 cylindrical lock built for durability in demanding environments, including marine and coastal settings. Constructed with stainless steel chassis and nonferrous materials, this lock resists corrosion from moisture and salt exposure. The interchangeable core design allows quick field re-keying without removing the lock from the door.
Compatible with SFIC (Small Format Interchangeable Core) standards, the X511CP6D fits 1-3/8" to 1-7/8" doors with a standard 2-3/4" backset. Installation uses threaded collars with a special wrench included. For expert guidance on keying options, compatibility, or custom configurations, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for authorized dealer support.
Specifications
- Brand: Falcon
- Model: X511CP6D HG 626 KD
- Grade: 1
- Construction: Stainless steel chassis with nonferrous internal parts
- Door Thickness: 1-3/8" to 1-7/8"
- Backset: 2-3/4" standard (2-3/8" available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin options available)
- Keyway: "G" standard ("A" available with I/C core)
- Bolt Projection: 9/16", UL Listed for A-label
- Latch Faceplate: 2-1/4" x 1-1/8"
- Strike: 4-7/8" x 1-1/4" ANSI
- Trim: Stainless steel roses and knobs
- Attachment: Threaded collars with locking plate
- Keys: Two nickel silver keys included
