Description

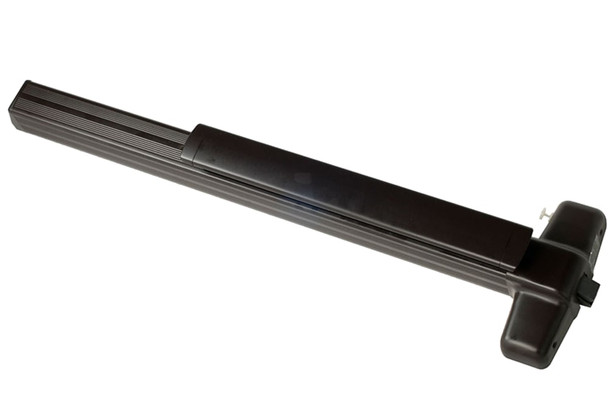

The Von Duprin XP99EO is a heavy-duty rim exit device designed for single and double doors with mullions that demand enhanced security. Its patented smart latch provides twice the static load force resistance of standard devices, enabling doors to withstand external attack while remaining secure. ANSI A156.3 Grade 1 and UL-listed for panic hardware, it is ideal for commercial facilities requiring reliable emergency egress protection.
This 4-foot device is field-selectable for multiple functions (EO, DT, NL standard; TP, K, L convertible) and compatible with hollow metal doors featuring 86 or 161 cutouts. Includes 909 panic strike and 954 mullion fire strike. For expert guidance on installation, keying, or compatibility with your specific doors, contact E.D. Locks' authorized team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Device Length: 3'2.4" to 3' (711mm to 914mm)
- Door Size: 4'2.75" to 4' (864mm to 1219mm)
- Latch Bolt: Deadlocking, 0.75" (19mm) throw
- Center Case Dimensions: 8.5" x 2.75" x 2.75" (203mm x 70mm x 60mm)
- Mechanism Case Dimensions: 2.25" x 2.25" (57mm x 57mm)
- Pushbar Neutral Projection: 3.8" (97mm)
- Pushbar Depressed Projection: 3.1" (78mm)
- Device Centerline from Finished Floor: 39.4" (1011mm); 39.4" (1008mm) with mullion
- Grade: ANSI A156.3-2014 Grade 1
- UL Listed for Panic Exit Hardware
- Non-handed except with SD or -2 options
