Description

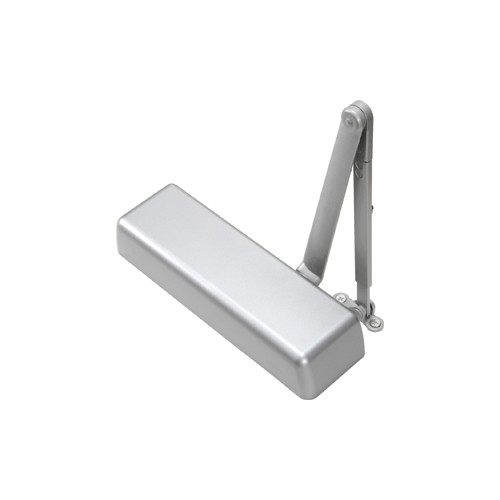

Yale® 5800 series cast iron door closers are ideal for commercial applications where ease of use and installation are required at an economical price. The 5800 series features rugged construction, adjustments for backcheck, closing and latch speed, rack and pinion operation and a variety of arm options.
Features
- Adjustable spring sizes 1-6
- Non-handed
- Cast iron
- Tri-packed: regular, parallel or top jamb mounting
- Full plastic cover
- Spring power adjustment
- Hold open and heavy-duty arm configurations
- Sleeve nuts included with all models
- Adjustable backcheck valve
- Adjustable closing speed valve
- Adjustable latching speed valve
- Finish: Aluminum Painted
Functions
- Backcheck
- Closing speed
- Latching speed
Certifications
- Certified for ANSI/BHMA A156.4 Grade 1
- UL and cUL listed. This includes compliance to UL10C.
- Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
- 10-year limited warranty
Models Available
- 5801: Standard Non-Hold Open
- 5811: Hold-Open
- 5821: Non-Hold Open Stop Only
- 5821T: Hold-Open Holder/Stop Thumbturn
Applications
