Description

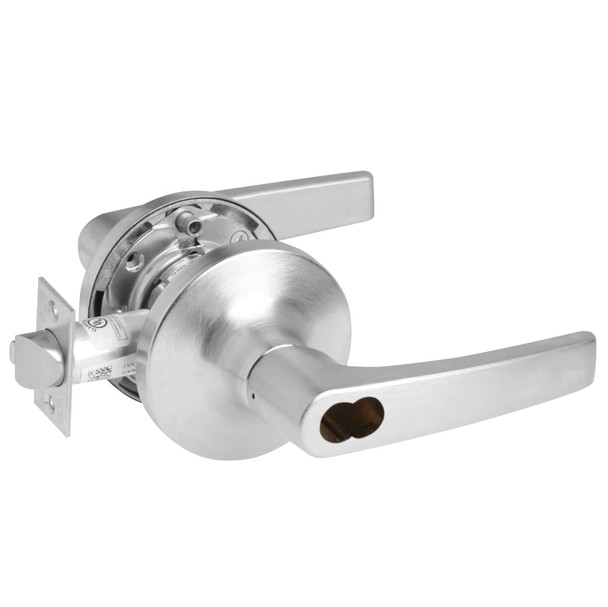

The Yale MO5407LN is a heavy-duty Grade 1 cylindrical lockset engineered for industrial, commercial, and institutional applications where durability and reliability are non-negotiable. Its free-wheeling lever mechanism reduces vandalism risk and maintenance demands, while stainless steel latchbolts, wear-resistant chassis plates, and through-bolt construction deliver exceptional longevity and smooth operation.
This lockset accommodates standard 1/2-inch throws and optional 3/4-inch throws for fire-rated or paired doors, with door thickness adjustment from 1-3/8 inches to 2 inches via patented rose support plates. It accepts multiple cylinder types including Yale, Schlage, Sargent, Best, ASSA, and Medeco keyways. For expert keying guidance, compatibility verification, and authorized dealer support, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Yale/Accentra
- Model: MO5407LN ICLC 626
- Grade: 1
- Finish: 626
- Standard Latch Throw: 1/2 inch
- Optional Latch Throw: 3/4 inch
- Door Thickness Range: 1-3/8 inch to 2 inch
- Rose Size: 3-1/2 inches
- Lever Options: Augusta, Monroe, Pacific Beach (ADA compliant, non-handed)
- Cylinder Options: Yale 6-pin and 7-pin, Yale KeyMark protected keyway, Schlage C, Sargent LA, Best small format interchangeable cores
- Functions: 24 including electrified options
- Finishes Available: 13
- Latch Material: Stainless steel
- Features: Free-wheeling lever mechanism, wear-resistant chassis plates, through-bolts, door-adjustable rose support plates, heavy-duty lever return springs (lifetime warranted)
