Description

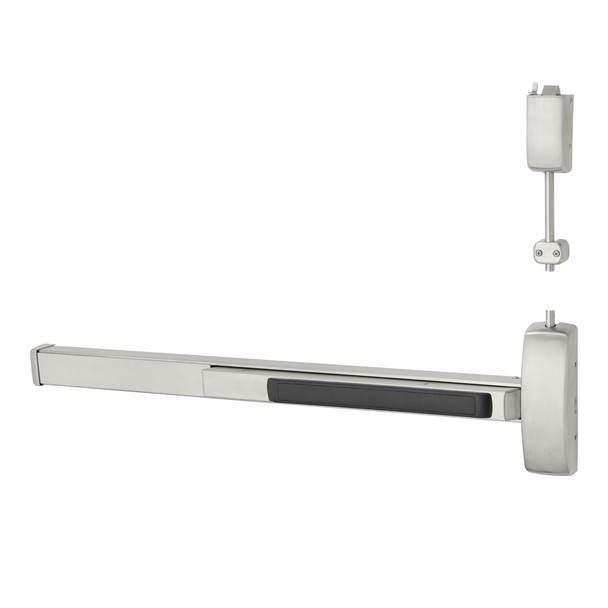

The Sargent 80 Series exit device is a heavy-duty push bar mechanism designed for commercial buildings requiring durable, code-compliant egress hardware. Built to exceed ANSI/BHMA Grade 1 standards, it suits wood or metal doors 1 3/4" to 2 1/4" thick and features modular construction with minimal moving parts for reliable, maintenance-free operation.
This rim-mounted, right-hand reverse model fits door widths 24" to 48" with rail options (E, F, J, G) that require no cutting for standard door sizes. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance, keying options, and to discuss delayed egress, alarmed, or electric latch retraction configurations for your specific application.
Specifications
- Brand: Sargent
- Model: 12-NB8743G ETB RHR 32D
- Type: Rim Exit Device
- Hand: Right-Hand Reverse
- Door Thickness: 1 3/4" to 2 1/4"
- Door Width Range: 24" to 48"
- E Rail: 24" to 32" (no cut at 32")
- F Rail: 33" to 36" (no cut at 36")
- J Rail: 37" to 42" (no cut at 42")
- G Rail: 43" to 48" (no cut at 48")
- Stile Requirements: 4 1/2" minimum with trim, 3 1/2" minimum without trim
- Standard: ANSI/BHMA Grade 1
- Door Types: Wood or metal
