Description

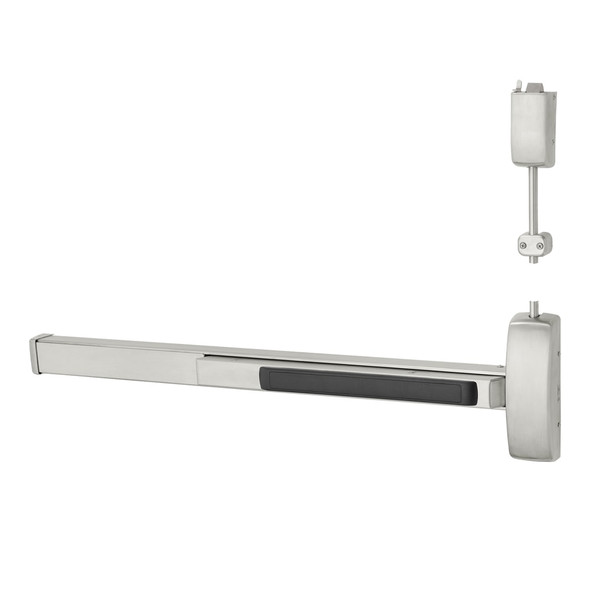

The Sargent 80 Series exit device is a heavy-duty push bar solution for wood or metal doors requiring Grade 1 security and reliability. Ideal for commercial facilities, schools, hospitals and multi-tenant buildings, this rim-mounted, right-hand reverse device exceeds ANSI/BHMA Grade 1 cycle and strength requirements with minimal maintenance and maximum durability throughout the building's life.
This model fits standard 1-3/4 inch doors with E Rail configuration for 24 to 32 inch widths; thicker doors and other rail sizes available. Installation requires proper stile widths: 4.5 inch minimum with trim, 3.5 inch without. As an authorized Sargent dealer, E.D. Locks provides expert specification guidance and access to modular options including delayed egress, alarmed exit and electric latch retraction. Contact sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 12-NB8743G
- Configuration: Rim, Right-Hand Reverse
- Door Thickness: 1-3/4 inch (44mm)
- Door Width Range (E Rail): 24 to 32 inches (61cm to 81cm)
- No Cutting Required: 32 inch doors
- Minimum Stile Width with Trim: 4-1/2 inches (114mm)
- Minimum Stile Width without Trim: 3-1/2 inches (89mm)
- Grade: ANSI/BHMA Grade 1
- Compatible Door Types: Wood or metal
- Options Available: Delayed egress, alarmed exit, electric latch retraction
