Description

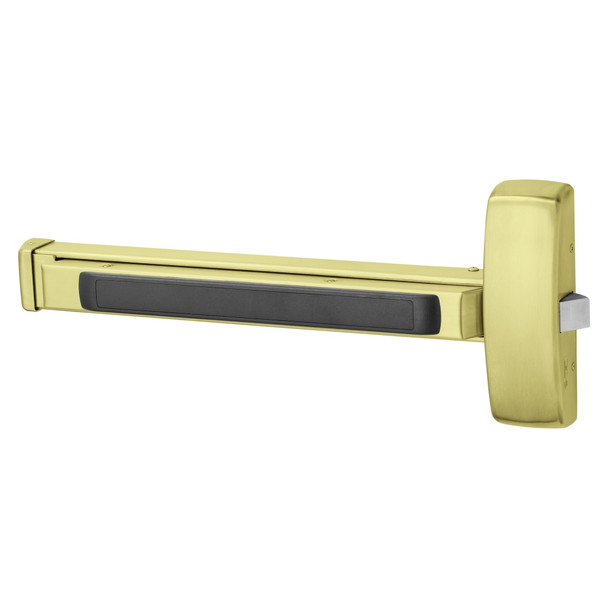

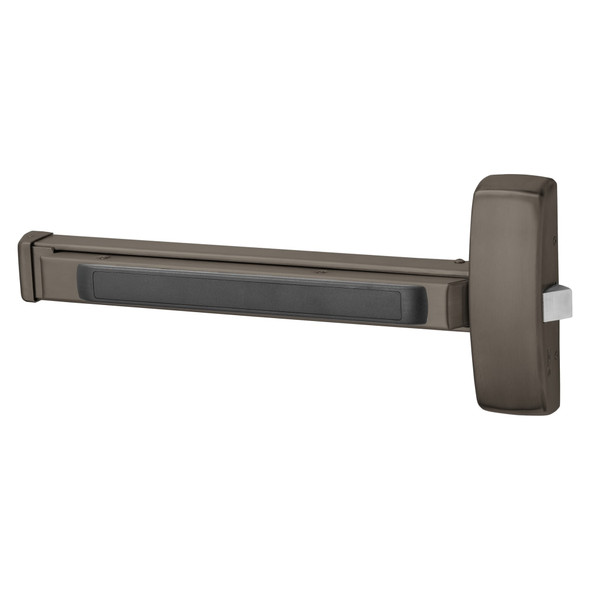

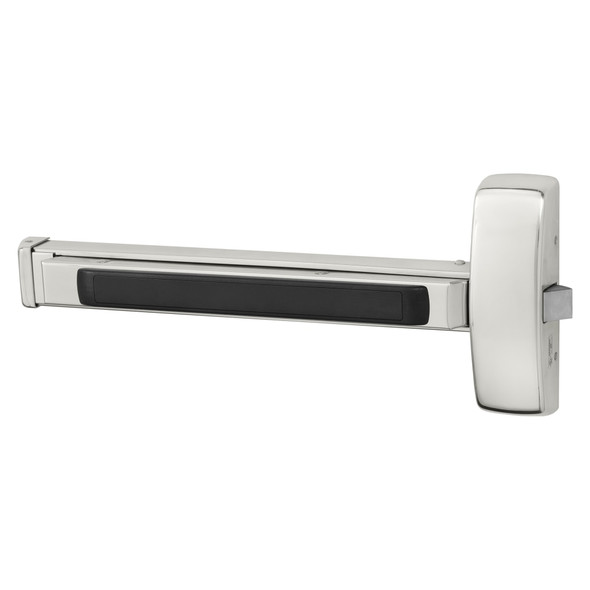

The Sargent 80 Series rim exit device is a Grade 1 rated panic hardware solution for wood and metal doors in commercial facilities requiring durable, low-maintenance security. Ideal for single and double door applications, this device features single-point latching, quiet operation, and modular construction that exceeds ANSI/BHMA standards for cycle and strength.
Compatible with 1-3/4 inch thick doors in multiple widths using E, F, J, or G rails (24 to 48 inches). UL Fire and Panic listed with options for delayed egress, alarmed exit, and electric latch retraction. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for proper sizing, installation guidance, and expert support.
Specifications
- Model: 125556-8804E 4
- Series: Sargent 80
- Type: Rim exit device
- Configuration: Rim mount
- Door thickness: 1-3/4 inch (44mm)
- Door widths: E Rail 24-32 inches, F Rail 33-36 inches, J Rail 37-42 inches, G Rail 43-48 inches
- Applications: Wood or metal doors, single and double door with mullions
- Rating: ANSI A156.3 Grade 1
- Certifications: UL Fire and Panic listed
- Features: Single-point latching, quiet operation, modular construction, maintenance-free
