Description

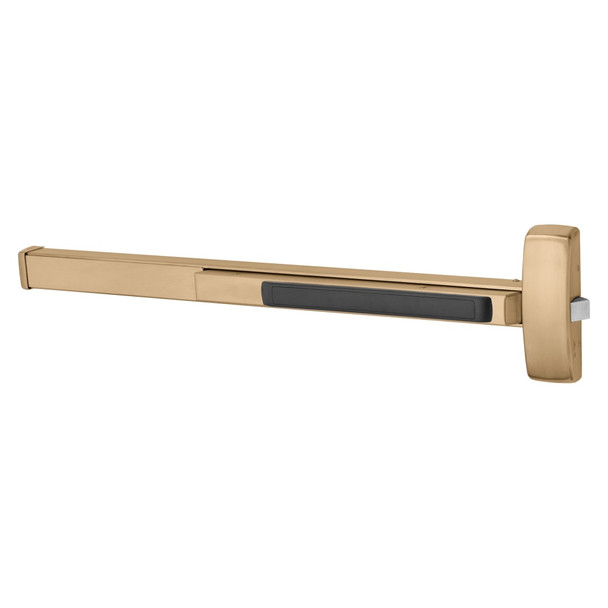

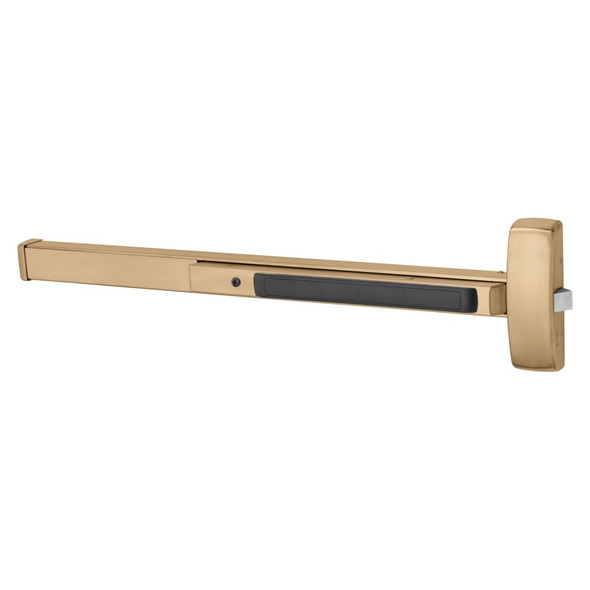

The Sargent 80 Series Rim Exit Device is a Grade 1 panic hardware solution built for commercial facilities demanding durability and reliability. Engineered for wood or metal doors 1-3/4" thick, this single-point latching device delivers strong security while meeting ANSI/BHMA Grade 1 requirements. Its modular construction and minimal moving parts ensure maintenance-free operation throughout the building's life.
This rim configuration accommodates door widths from 24" to 48" with available rail options (E, F, J, G) and no cutting required for standard widths. The device supports single or double door applications with mullions and qualifies for delayed egress, alarmed exit, and electric latch retraction options. As an authorized Sargent dealer, E.D. Locks provides expert guidance on rail selection, installation, and code compliance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Sargent
- Series: 80 Series
- Device Type: Rim Exit Device
- Door Thickness: 1-3/4" (44mm); over 1-3/4" specify thickness
- Door Widths: E Rail 24-32" | F Rail 33-36" | J Rail 37-42" | G Rail 43-48"
- Latching: Single point
- Door Types: Wood or metal
- Applications: Single door and double door with mullions
- Standards: ANSI A156.3 Grade 1 | UL Fire and Panic listed
- Features: Quiet operation, modular construction, minimal maintenance
