Description

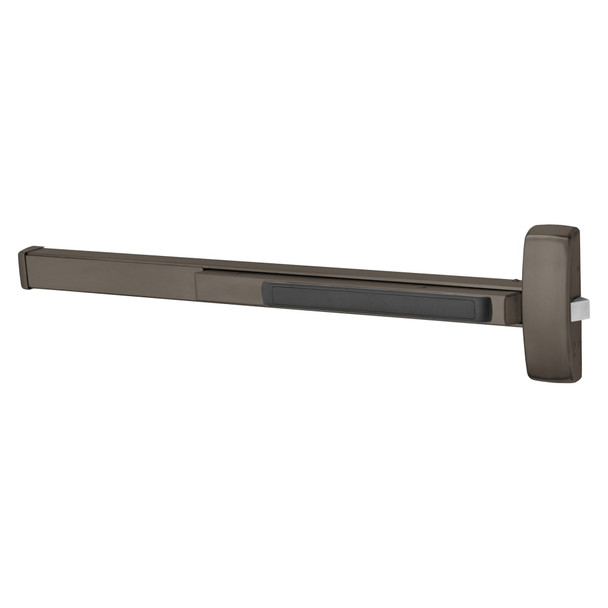

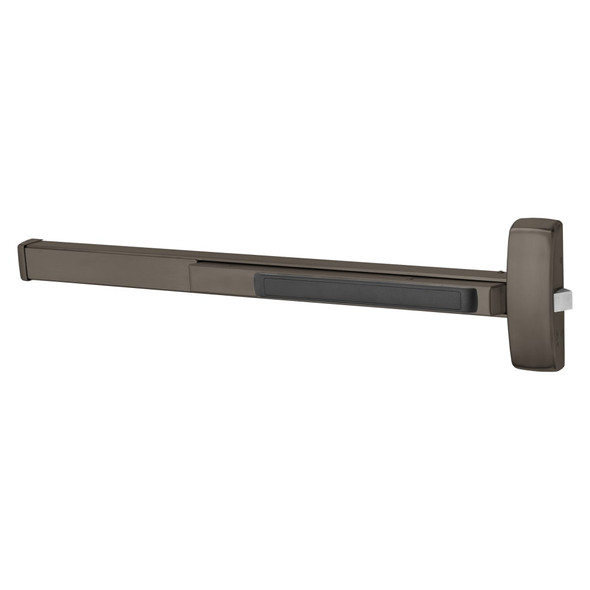

The Sargent 80 Series rim exit device delivers Grade 1 security for wood and metal doors in commercial and institutional buildings. This single-point latching device provides quiet operation, minimal maintenance, and exceptional durability across single and double-door applications with mullions, meeting ANSI A156.3 standards and UL Fire and Panic listings.
The 10B model accommodates doors 37 inches to 42 inches wide with J Rail configuration. Compatible with wood or metal doors 1.75 inches thick (thicker doors available with 31-prefix ordering). An authorized E.D. Locks dealer offers expert guidance on rail selection, installation, and options like delayed egress or electric latch retraction. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Model: 125556-8806J 10B
- Series: Sargent 80
- Configuration: Rim
- Door Types: Wood or metal
- Door Thickness: 1.75 inches (44mm)
- Door Width: 37 inches to 42 inches with J Rail
- Latch Type: Single-point rim latching
- Applications: Single and double doors with mullions
- Standard: ANSI A156.3 Grade 1
- Listings: UL Fire and Panic
