Description

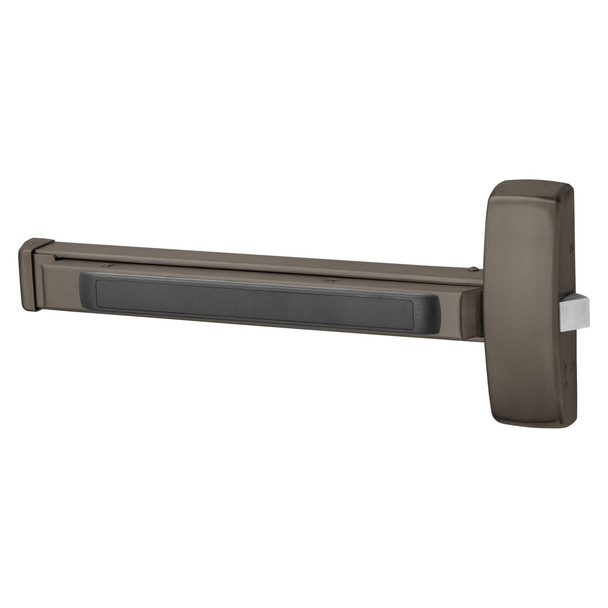

The Sargent 80 Series Rim Exit Device is a Grade 1 panic bar designed for wood or metal doors requiring durable, code-compliant egress. Ideal for commercial buildings, schools, and healthcare facilities, this single-point latching device provides reliable security while meeting ANSI/BHMA Grade 1 cycle and strength standards. Its modular construction minimizes maintenance and delivers long-term performance.
Compatible with 1-3/4" thick doors (E, F, J, and G rail configurations support 24" to 48" widths). Installation requires no cutting on standard door sizes. Delayed egress, alarmed, and electric latch retraction options are available for specialized applications. Contact E.D. Locks' experts at sales@edlocks.com or 1-877-207-6067 for sizing, keying, and installation guidance from an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Model: 125556-8843E 10B
- Series: 80 Series
- Type: Rim Exit Device
- Door Thickness: 1-3/4" (44mm) standard
- Rail Options: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Function: Single-point latching, single or double door with mullions
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, modular construction, maintenance-free
