Description

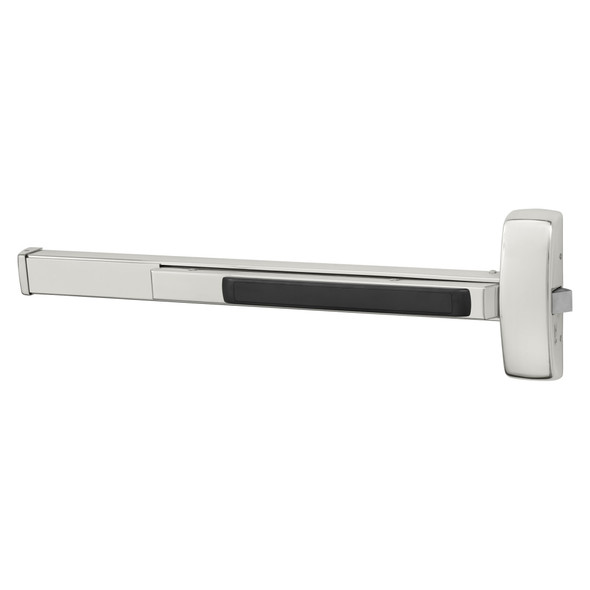

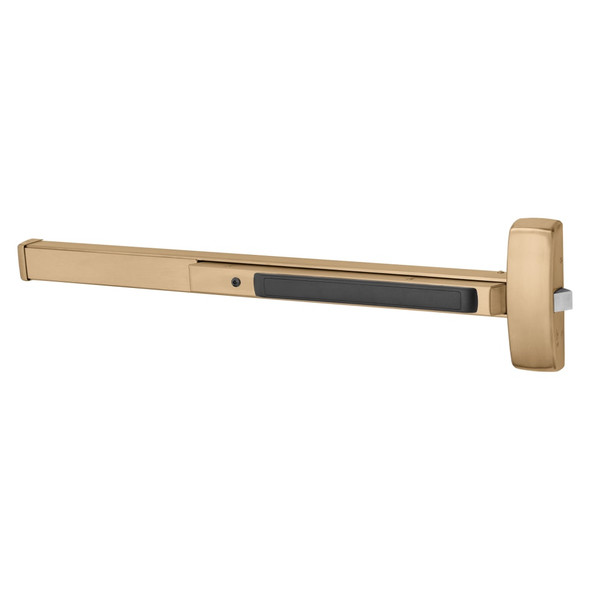

The Sargent 80 Series Rim Exit Device is a heavy-duty panic hardware solution for wood and metal doors requiring ANSI Grade 1 security and reliability. Ideal for commercial facilities, schools, hospitals and multi-tenant buildings, it provides single-point latching with quiet operation and exceptional durability that meets or exceeds code requirements for life safety and egress.
This rim device fits 1-3/4 inch thick doors and accommodates door widths from 24 to 42 inches with the J Rail configuration shown; thicker doors and wider applications are available. The 80 Series features modular construction with minimal maintenance needs. As an authorized Sargent dealer, E.D. Locks offers expert guidance on door thickness, rail selection, and optional features like delayed egress or electric latch retraction. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification verification and fast shipping.
Specifications
- Brand: Sargent
- Model: 80 Series (SKU: 125556-8813J 10)
- Type: Rim Exit Device
- Rail: J Rail
- Door Thickness: 1-3/4 inch (44mm)
- Door Width Range (J Rail): 37 to 42 inches (94 to 107cm)
- Door Types: Wood or metal
- Latch Configuration: Single point latching
- Applications: Single door and double door with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
