Description

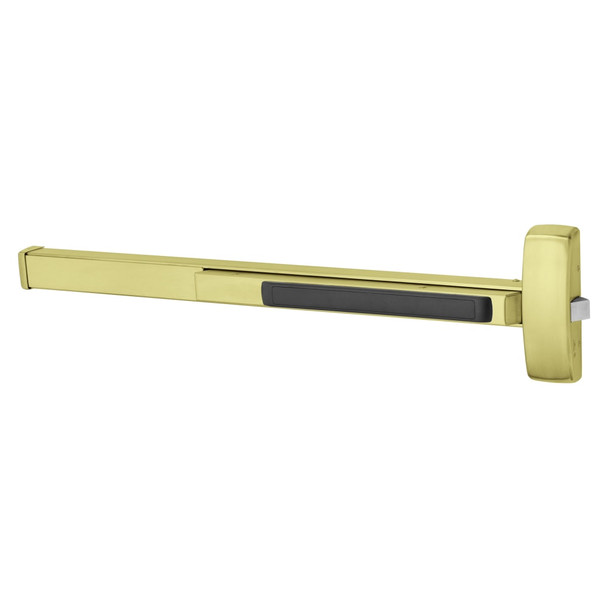

The Sargent 80 Series rim exit device is a Grade 1 panic bar designed for wood or metal doors requiring reliable emergency egress and high-security performance. Ideal for commercial facilities, healthcare, retail and institutional buildings, this single-point latching device combines durable construction with quiet operation to meet life-safety codes while protecting your premises.
Compatible with 1-3/4 inch thick doors and available in multiple rail configurations (E, F, J, G) to fit door widths from 24 to 48 inches. The device is UL Fire and Panic listed, ANSI A156.3 Grade 1 certified, and supports both single and double door applications. Contact E.D. Locks & Security at sales@edlocks.com or 1-877-207-6067 for expert installation guidance, keying options and authorization support.
Specifications
- Series: Sargent 80
- Model: 125556-8828J LHR 4
- Type: Rim Exit Device, Single Point Latching
- Door Thickness: 1-3/4 inch (44mm)
- Door Width Range: 24-42 inches (J Rail)
- Configurations: E Rail (24-32), F Rail (33-36), J Rail (37-42), G Rail (43-48)
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Door Types: Wood or Metal
- Applications: Single door and double door with mullions
- Features: Modular construction, maintenance-free, quiet operation
