Description

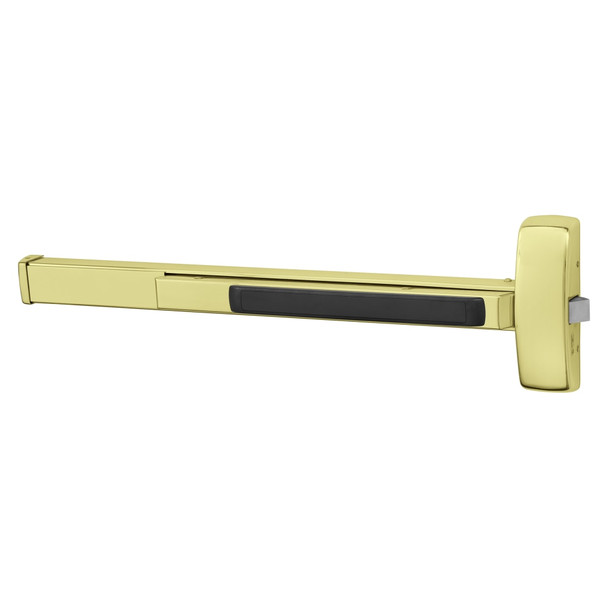

The Sargent 80 Series rim exit device is a Grade 1 panic bar engineered for wood or metal doors requiring durable, long-lasting security. Ideal for commercial facilities, schools, hospitals and multi-tenant buildings, this single-point latching device provides reliable emergency egress while maintaining controlled access and unsurpassed tamper resistance.
This J Rail model fits doors 37 to 42 inches wide with no cutting required for 42 inch doors. Sargent 80 Series devices are UL fire and panic listed, ANSI A156.3 Grade 1 certified, and feature modular construction for minimal maintenance. For proper sizing, keying options, or delayed egress and alarmed variants, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Model: 125556-8828J RHR 3
- Configuration: Rim exit device, right-hand reverse
- Rail Type: J Rail
- Door Width Range: 37 to 42 inches (94 to 107 cm)
- Door Thickness: 1-3/4 inch (44 mm)
- Latching: Single point
- Door Types: Wood or metal
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Applications: Single door and double door with mullions
