Description

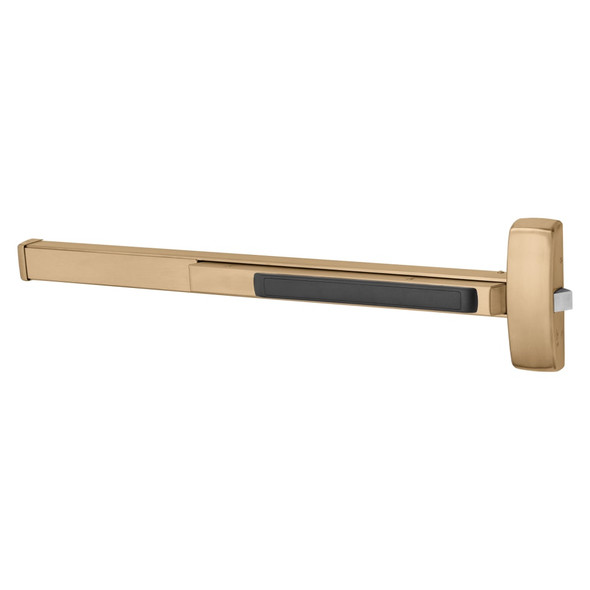

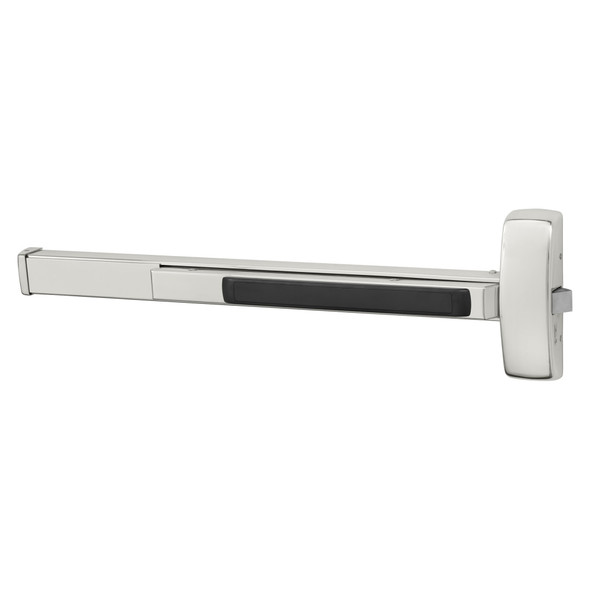

The Sargent 80 Series Rim Exit Device is a Grade 1 panic hardware solution built for commercial facilities demanding durability and reliable egress security. Ideal for wood or metal doors, this single-point latching device handles both single and double-door applications with quiet operation and maintenance-free performance that exceeds ANSI/BHMA requirements.
This rim exit device fits doors 1-3/4 inches thick and accommodates door widths from 24 to 48 inches depending on rail selection (E, F, J, or G rails). UL Fire and Panic listed, it supports optional delayed egress, alarmed exit, and electric latch retraction features. Contact E.D. Locks & Security at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and installation support.
Specifications
- Brand: Sargent
- Model: 125556-8844G 3
- Type: Rim Exit Device, 80 Series
- Door Thickness: 1-3/4 inches (44 mm)
- Door Width Range: 24 to 48 inches depending on rail (E: 24-32, F: 33-36, J: 37-42, G: 43-48)
- Latching: Single point
- Applications: Single door and double door with mullions
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Features: Quiet operation, modular construction, few moving parts
