Description

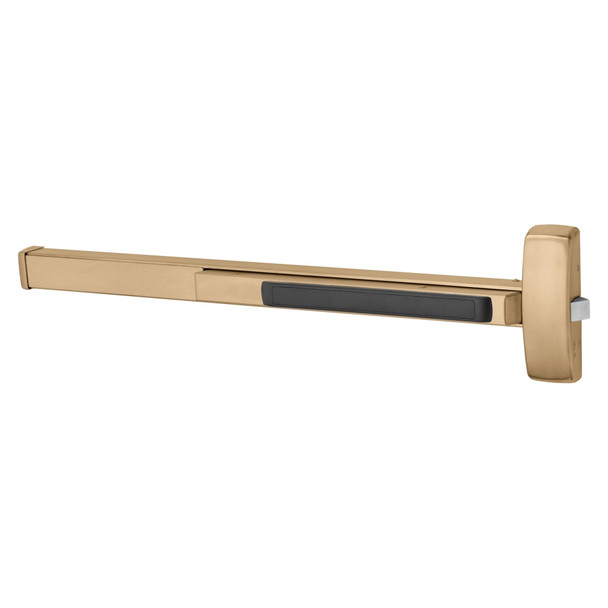

The Sargent 80 Series rim exit device is a heavy-duty single point latching solution built for wood or metal doors in commercial facilities requiring maximum security and durability. Ideal for emergency egress in institutional, industrial and retail environments, it delivers ANSI/BHMA Grade 1 performance with minimal maintenance and unsurpassed reliability throughout the building's life.
This RHR model fits E, F, J and G rail configurations for door widths 24 to 48 inches with no cutting required at standard widths. Compatible with 1-3/4 inch thick doors; thicker doors available as 31-prefix orders. Options include delayed egress, alarmed exit and electric latch retraction. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for compatibility verification and installation guidance tailored to your specific door assembly.
Specifications
- Single point rim latching device
- Compatible with single door and double door applications with mullions
- Door thickness: Wood or metal 1-3/4 inch (44mm); over 1-3/4 inch specify thickness and order as 31-prefix
- E Rail: 24 to 32 inches (61-81cm), no cutting required for 32 inch
- F Rail: 33 to 36 inches (84-91cm), no cutting required for 36 inch
- J Rail: 37 to 42 inches (94-107cm), no cutting required for 42 inch
- G Rail: 43 to 48 inches (110-122cm), no cutting required for 48 inch
- ANSI A156.3 Grade 1 certified
- UL Fire and Panic listed
- Quiet operation with solid security
- Modular construction with few moving parts
